Kit de montage clignotants blancs for BMW 5 Series E39 525td (1998)

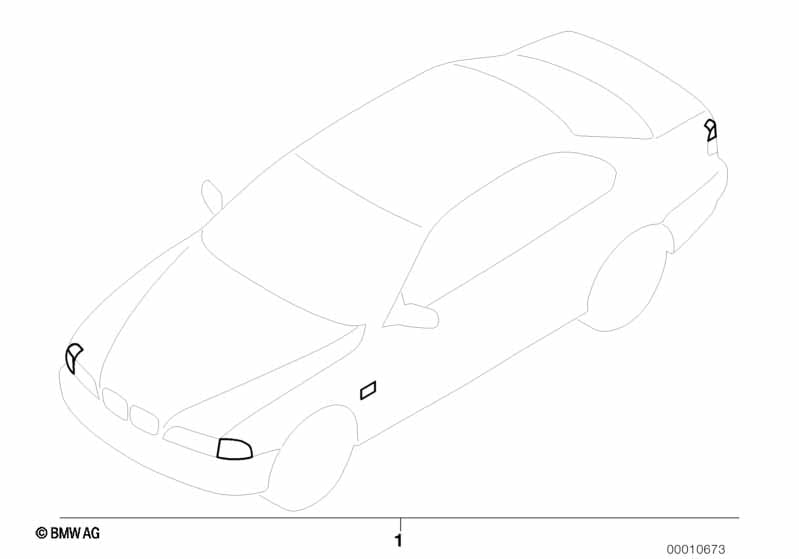

This Kit de montage clignotants blancs technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Phare xénon |
=Non |
|||||||||
| 01 | Kit de montage clignotants blancs | 1 | 09/2000 | 82199408461 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Phare xénon |
=Oui |
|||||||||
| 01 | Kit de montage clignotants blancs | 1 | 09/2000 | 82199408463 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
