Kit de montage lumiere xenon for BMW 5 Series E39 525td (1998)

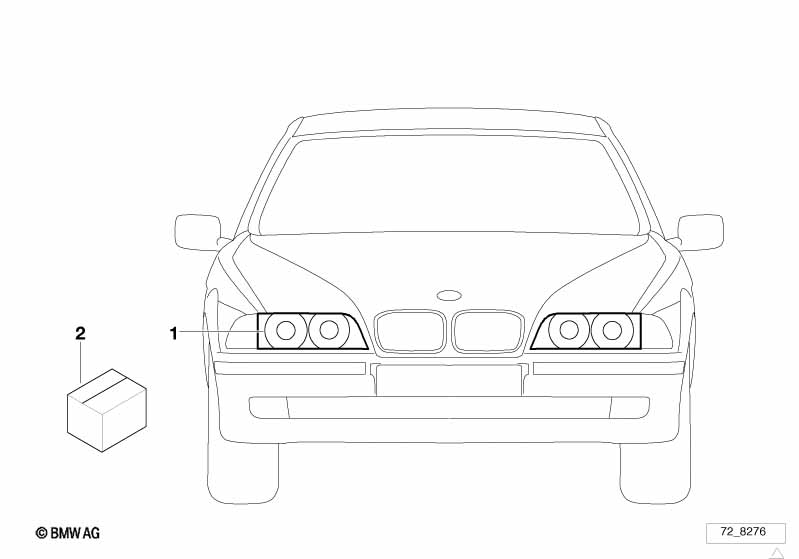

This Kit de montage lumiere xenon technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit de montage phare xenon/clign. jaune | 1 | 09/2000 | 63120025555 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Adaptat.,douille d'amp. feu de position | 2 | 09/2000 | 63120025497 | $17.00 | Shop at ECS Tuning | ||||
| Kit d'équip. comprend facelift projecteur uniquement en combinaison avec le kit de montage installation de lave-phare |
||||||||||
| -- | Adaptat.,douille d'ampoule de clignotant | 2 | 09/2000 | 63120025499 | $17.00 | Shop at ECS Tuning | ||||
| Kit d'équip. comprend facelift projecteur uniquement en combinaison avec le kit de montage installation de lave-phare |
||||||||||
| 01 | Kit de montage phare xenon/clign. blancs | 1 | 09/2000 | 63120025557 | $2139.00 | arrêté | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Adaptat.,douille d'amp. feu de position | 1 | 09/2000 | 63120025497 | $17.00 | Shop at ECS Tuning | ||||
| Kit d'équip. comprend facelift projecteur uniquement en combinaison avec le kit de montage installation de lave-phare |
||||||||||
| -- | Adaptat.,douille d'ampoule de clignotant | 1 | 09/2000 | 63120025499 | $17.00 | Shop at ECS Tuning | ||||
| Kit d'équip. comprend facelift projecteur uniquement en combinaison avec le kit de montage installation de lave-phare |
||||||||||
Note
- arrêté = la pièce n'est plus produite.
