Naviga.sans SA602/unique.pièces d.rechan for BMW 5 Series E39 525td (1998)

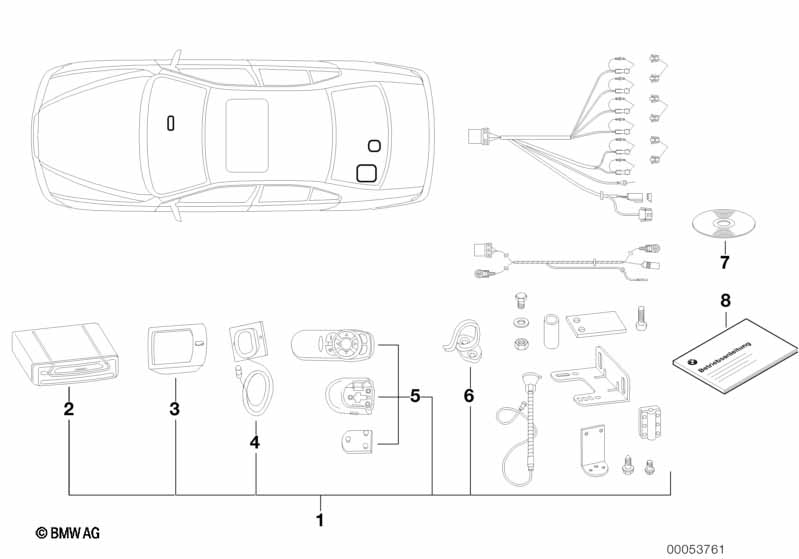

This Naviga.sans SA602/unique.pièces d.rechan technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : La notice de montage ne fait pas partie du kit de postéquipement. Imprimer la notice actualisée sur le portail Aftersales Assistance Portal (ASAP) et la remettre au client. |
|||||||||
| 02 | Ordinateur CD de Navigation | 1 | 65909408772 | arrêté | Shop at ECS Tuning | |||||
| 03 | Moniteur couleur | 1 | 82829405723 | $1081.13 | arrêté | Shop at ECS Tuning | ||||
| 04 | Antenne GPS | KURZ | 1 | 65909410711 | arrêté | Shop at ECS Tuning | ||||
| 05 | Télécommande à infrarouge | 1 | 84449408787 | $107.42 | arrêté | Shop at ECS Tuning | ||||
| 06 | Collier à cran | 1 | 84439408819 | arrêté | Shop at ECS Tuning | |||||
| 07 | CD de logiciel | NAVI MKIII V4.9 | 1 | 84430027783 | $27.50 | arrêté | Shop at ECS Tuning | |||
| pour charger d'autres langues que l'allemand et l'anglais |
||||||||||
Note
- arrêté = la pièce n'est plus produite.
