Syst. Navig. et carte d'itinéraires (SZ) for BMW 5 Series E39 525td (1998)

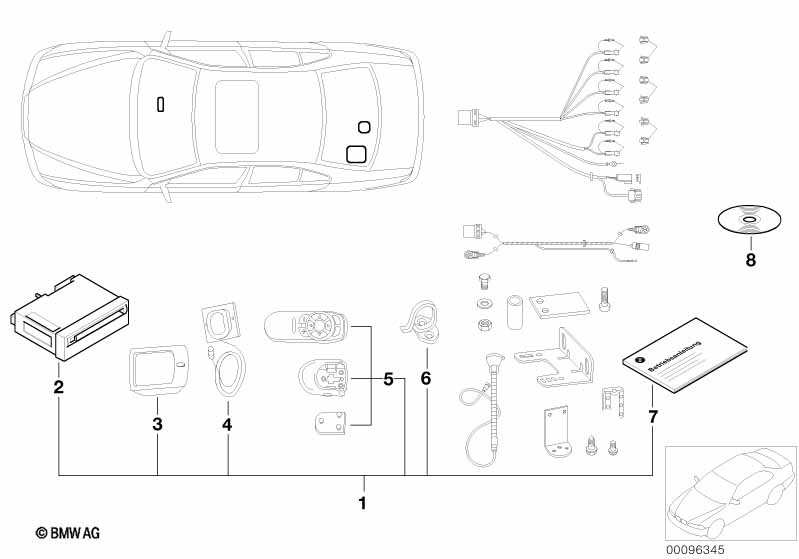

This Syst. Navig. et carte d'itinéraires (SZ) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ne convient pas avec moniteur de bord (SA602), navigation radio (SA606), système de navigation (SA609) |
|||||||||
| 01 | Kit systeme de navigation | NAVI MK3 SZ | 1 | 09/1998 | 65900136830 | arrêté | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Module inverseur | 1 | 09/1998 | 82890003939 | arrêté | Shop at ECS Tuning | ||||
| Kit montage module inverseur n'est pas nécessaire si cela a été déjà monté avec un autre jeu d'èquipement ultérieur (Telephone, Sound Modul) |
||||||||||
| 02 | Ordinateur CD de Navigation | MK III | 1 | 65900028275 | $2695.00 | arrêté | Shop at ECS Tuning | |||
| 03 | Moniteur couleur | 1 | 82829405723 | $1081.13 | arrêté | Shop at ECS Tuning | ||||
| 04 | Antenne GPS | 1 | 65908375944 | $165.22 | Shop at ECS Tuning | |||||
| 05 | Télécommande à infrarouge | 1 | 84449408787 | $107.42 | arrêté | Shop at ECS Tuning | ||||
| 06 | Collier à cran | 1 | 84439408819 | arrêté | Shop at ECS Tuning | |||||
| 08 | CD de logiciel | NAVI MK3 V6.9 | 1 | 84430141487 | $29.50 | arrêté | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Notice d'utilisation en plus.langues | MK3 | 1 | 01290140891 | $10.70 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
