Pommeau de commande Classic for BMW 5 Series E39 525td (1998)

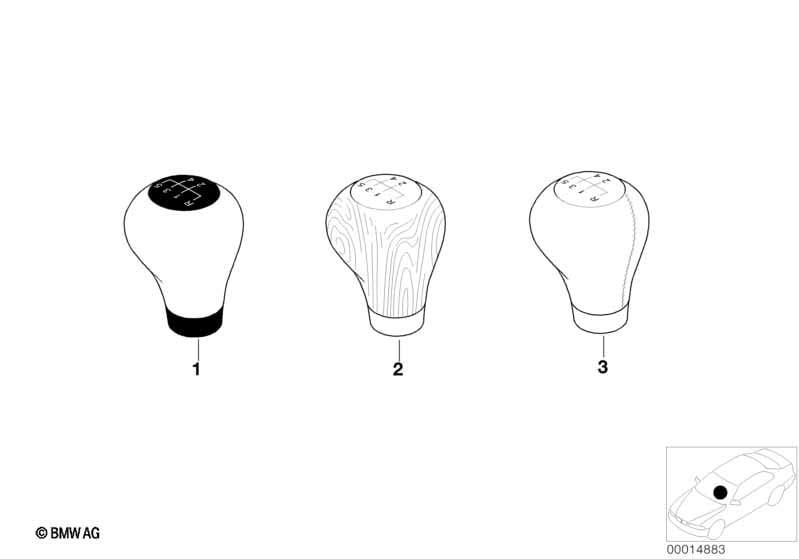

This Pommeau de commande Classic technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pommeau en alu | MATTCHROM | 1 | 25119416257 | $115.95 | arrêté | Shop at ECS Tuning | |||
| 01 | Pommeau en alu | 1 | 82239405686 | $115.95 | arrêté | Shop at ECS Tuning | ||||
| 02 | Pommeau de levier de vit. érable / alu | HOCHGLANZ HELL | 1 | 25110000455 | $117.95 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 02 | Pommeau de levier de vit. érable / alu | HOCHGLANZ | 1 | 82239405687 | $92.00 | arrêté | Shop at ECS Tuning | |||
| 03 | Pommeau d levier de vitesses en cuir/alu | 1 | 82239405688 | $103.95 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
