Kit de montage antenne de vitre for BMW 5 Series E39 525td (1998)

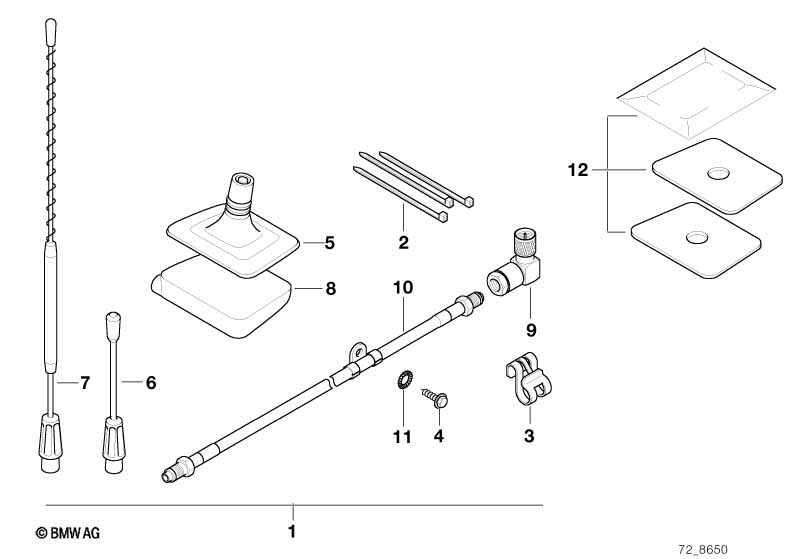

This Kit de montage antenne de vitre technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit de montage antenne de vitre | DUALBAND | 1 | 84540029408 | $122.95 | arrêté | Shop at ECS Tuning | |||
| 02 | Attache-câble | L=292MM/B=4,8MM | 3 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 03 | Agrafeur de cable d'antenne | 3 | 84548369487 | $0.53 | Shop at ECS Tuning | |||||
| 04 | Vis six pans | M5X15 | 1 | 84318361762 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Pied d'antenne téléphone de lunette arr. | D-NETZ | 1 | 84508369458 | $20.04 | Shop at ECS Tuning | ||||
| 06 | Antenne | D-NETZ 80MM | 1 | 84508369459 | $22.08 | Shop at ECS Tuning | ||||
| 07 | Antenne | D-NETZ 275MM | 1 | 84508369460 | $39.14 | +vieille matière | Shop at ECS Tuning | |||
| 08 | Boîtier de connexion | D-NETZ | 1 | 84508370551 | $26.62 | Shop at ECS Tuning | ||||
| 09 | Adaptateur | MINIUHF/SAP | 1 | 84540143305 | $15.75 | arrêté | Shop at ECS Tuning | |||
| 10 | Câble d'antenne | 2000MM | 1 | 84549405540 | arrêté | Shop at ECS Tuning | ||||
| 11 | Rondelle dentee | A6,4 | 1 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Feuilles adhesives p.L antenne sur vitre | 1 | 84549405538 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
