Console de téléphone for BMW 5 Series E39 525td (1998)

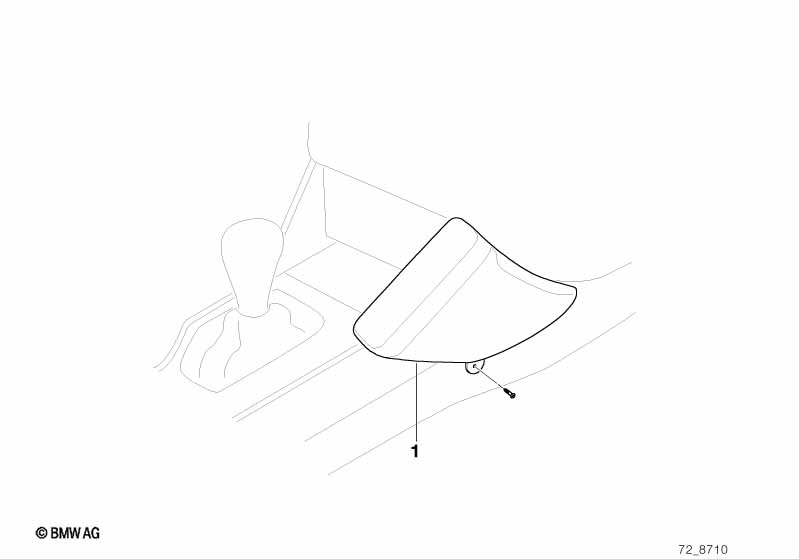

This Console de téléphone technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Surface grenue d'origine BMW | ||||||||||
| 01 | Console de téléphone | SCHWARZ | 1 | 84139404990 | $159.59 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| Revêtement cuir d'origine BMW | ||||||||||
| 01 | Console de téléphone cuir "montana" | SCHWARZ | 1 | 84139405107 | $200.88 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 01 | Console de téléphone cuir "montana" | GRAU | 1 | 84139405108 | $200.88 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 01 | Console de téléphone cuir "montana" | MARINEBLAU | 1 | 84139405109 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | Console de téléphone cuir "montana" | SANDBEIGE | 1 | 84139405110 | $200.88 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 01 | Console de téléphone cuir "montana" | ENGLISCHGRÜN | 1 | 84139408380 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | Console de téléphone cuir "montana" | AUBERGINE | 1 | 84139408381 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | Console de téléphone cuir "montana" | SATTELBRAUN | 1 | 84139408382 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
