Bavettes garde-boue for BMW 5 Series E39 525td (1998)

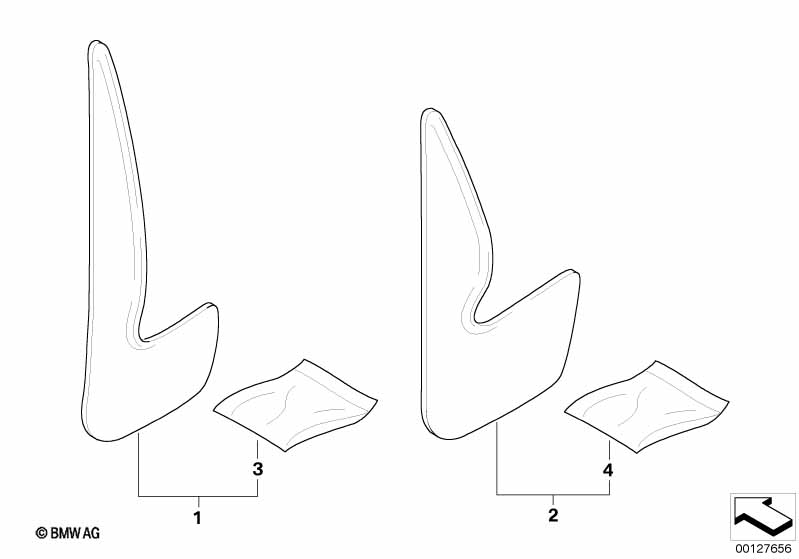

This Bavettes garde-boue technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Version Chine |
L8AAA=Non |
||||||||
| 01 | Jeu de bavettes avant | 1 | 82169405189 | $63.50 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Kit aérodynamique M ne convient pas avec le pack aérodynamique |
S715A=Non |
|||||||||
| 02 | Jeu de bavettes arrière | 1 | 82169405190 | $63.50 | arrêté | Shop at ECS Tuning | ||||
| 03 | Necessaire de montage avant | 2 | 82199405478 | $5.25 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Kit aérodynamique M ne convient pas avec le pack aérodynamique |
S715A=Non |
|||||||||
| 04 | Necessaire de montage arriere | 2 | 82199405479 | $5.25 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
