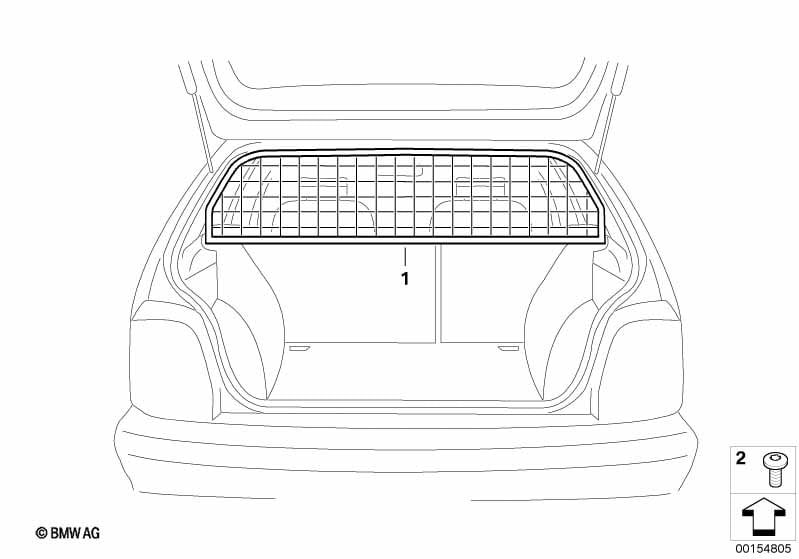

Grille de séparation du coffre à bagages for BMW 5 Series E39 530d (1998)
This Grille de séparation du coffre à bagages technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Notice de montage disponible sur ASAP | |||||||||
| Pour véhicules avec Filet coffre arrière |
S413A=Oui |
|||||||||
| 01 | Grille de séparation | 1 | 51479415341 | $511.00 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| Pour véhicules avec Filet coffre arrière |
S413A=Non |
|||||||||
| 01 | Grille de séparation | 1 | 51479415341 | $511.00 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| uniquement en combinaison avec Crochets de suspension arriere gauche Crochets de suspension arriere droite |
||||||||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
