Tapis sol fermeture rotation "Country" for BMW 5 Series E39 525td (1998)

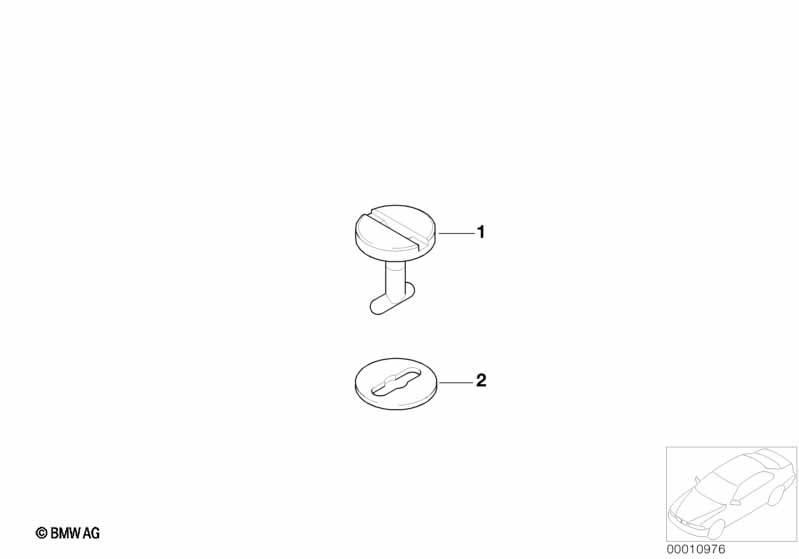

This Tapis sol fermeture rotation "Country" technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| NE CONVENANT QU'AVEC JEU TAPIS DE SOL COUNTRY |
||||||||||
| 01 | Couvercle 25,5mm | ANTHRAZIT | X | 82119410191 | $1.00 | arrêté | Shop at ECS Tuning | |||
| 01 | Couvercle 25,5mm | SILBERGRAU DKL. | X | 82119410192 | $1.00 | arrêté | Shop at ECS Tuning | |||
| 01 | Couvercle 25,5mm | PERGAMENT DKL. | X | 82119410194 | $1.00 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525td Tapis sol fermeture rotation "Country"?
- This technical diagram illustrates the Tapis sol fermeture rotation "Country" within the Post-équipement/transformation/access. group for the 5 Series E39 525td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Couvercle 25,5mm (Part #82119410191).
- Which models use the hardware listed in this Tapis sol fermeture rotation "Country"?
- The hardware and components featured in the Tapis sol fermeture rotation "Country" are specific to the 5 Series E39 525td produced during 1998. These technical specifications ensure that parts like the Couvercle 25,5mm (82119410191) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tapis sol fermeture rotation "Country" assembly?
- Each item in the Tapis sol fermeture rotation "Country" corresponds to the numbered list below the illustration. For the 5 Series E39 525td, you can identify the Couvercle 25,5mm by locating its position on the schematic, which then links to the official BMW part number 82119410191 for the Post-équipement/transformation/access. section.
