Kit de montage telecde chauffage auxil. for BMW 5 Series E39 525td (1998)

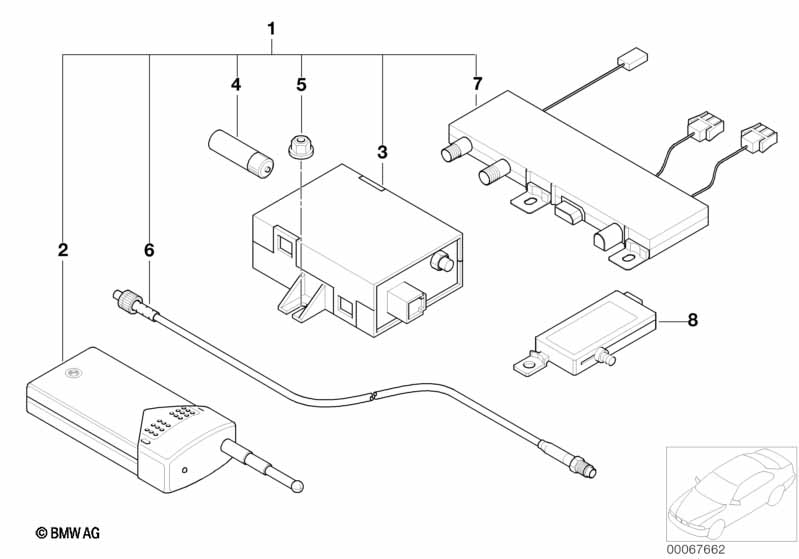

This Kit de montage telecde chauffage auxil. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : La notice de montage ne fait pas partie du kit de postéquipement. Imprimer la notice actualisée sur le portail Aftersales Assistance Portal (ASAP) et la remettre au client. Indications dans BTE 641047 et 641049 |
|||||||||
| 01 | Kit de montage telecde chauffage auxil. | T60 | 1 | 03/1999 | 64509408227 | arrêté | Shop at ECS Tuning | |||
| 02 | Emetteur de telecde de chauffage auxil. | 1 | 64128370971 | arrêté, SI 640196028 | Shop at ECS Tuning | |||||
| 03 | Recepteur de telecde de chauffage auxil. | 1 | 64128370970 | arrêté | Shop at ECS Tuning | |||||
| 04 | Batterie émetteur de télécommande | 2 | 64128378137 | Shop at ECS Tuning | ||||||
| 05 | Ecrou plast. axe à filetage à pas gros | M6 | 1 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Câble d'antenne télécom. chauff. auxil. | 470MM | 1 | 61108369018 | $22.60 | Shop at ECS Tuning | ||||
| 07 | Ampli-resistance | 1 | 09/2002 | 65258380687 | $197.28 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- SI = Service-Information (Information Service)
