Couvercle protection espace chargement for BMW 5 Series E39 525td (1998)

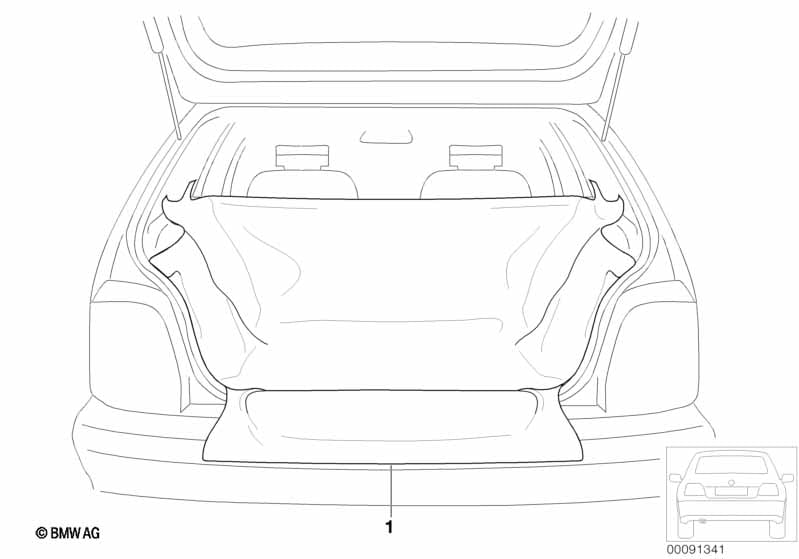

This Couvercle protection espace chargement technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection de la rampe de chargement | E39/2 | 1 | 51470028870 | $253.95 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525td Couvercle protection espace chargement?
- This technical diagram illustrates the Couvercle protection espace chargement within the Post-équipement/transformation/access. group for the 5 Series E39 525td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Protection de la rampe de chargement (Part #51470028870).
- Which models use the hardware listed in this Couvercle protection espace chargement?
- The hardware and components featured in the Couvercle protection espace chargement are specific to the 5 Series E39 525td produced during 1998. These technical specifications ensure that parts like the Protection de la rampe de chargement (51470028870) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Couvercle protection espace chargement assembly?
- Each item in the Couvercle protection espace chargement corresponds to the numbered list below the illustration. For the 5 Series E39 525td, you can identify the Protection de la rampe de chargement by locating its position on the schematic, which then links to the official BMW part number 51470028870 for the Post-équipement/transformation/access. section.
