Housse de siège en peau d'agneau for BMW 5 Series E39 525td (1998)

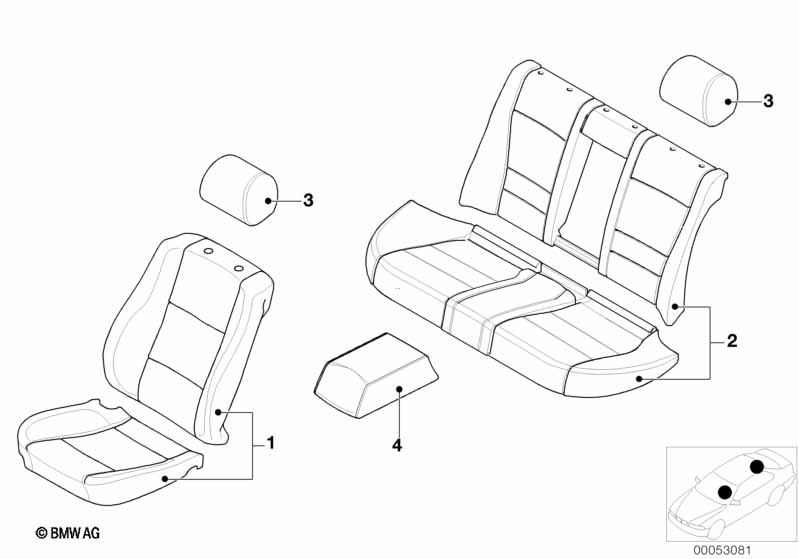

This Housse de siège en peau d'agneau technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Housse de siège en peau d'agneau
Descriptions Supplément Qté  A partir de   Jusqu'à  Référence pièce Prix Note
  i DISPONIBLE EN
noir
ANTHRAZIT
ultramarin
Silber
---------------------------
Indiquer en commandant:
SERIE/TYPE
Mois/année de fabrication et numéro de
châssis
Code des rembourrages
01 Revetement de siege av en peau de mouton 2 82119401064 arrêté Shop at ECS Tuning
Indication, si siège sport, anatomique
ou confort
Avec 1 pièce, indiquer si siège
conducteur ou passager
02 Revetement de siege ar en peau de monton 1 82119401065 arrêté Shop at ECS Tuning
Indiquer si banqu. fract. ou sac à skis
03 Revetement repose tete lammfell X 82119401066 arrêté Shop at ECS Tuning
Indication avant/arrière
04 Revetement appui-bras arriere lammfell MAL HINTEN 1 82119401067 arrêté Shop at ECS Tuning
05 Fermeture Velcro X 82119401053 $48.55 arrêté Shop at ECS Tuning
erforderlich, wenn die Mittelarmlehne
hinten bezogen werden soll
2x nécessaire en cas de banquette
arrière rabattable un tiers/deux tiers
et sac à skis
Note
  • arrêté = la pièce n'est plus produite.
