BMW Junior Seat for BMW 5 Series E39 525td (1998)

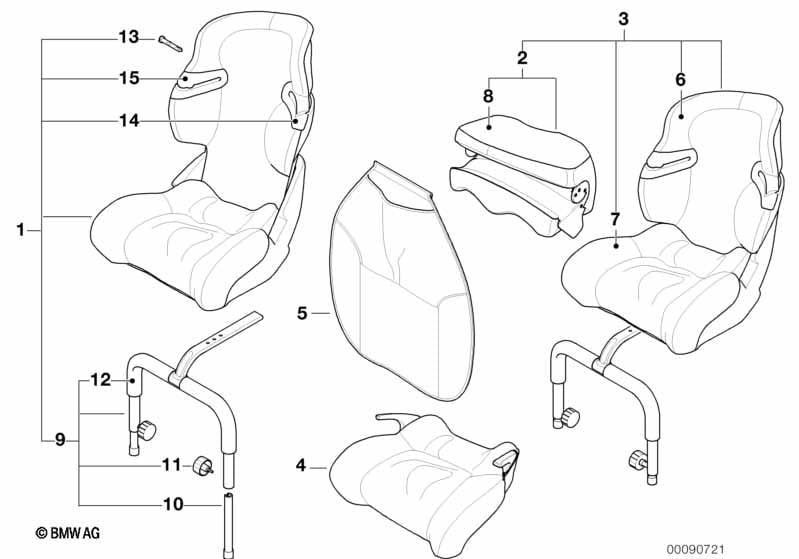

This BMW Junior Seat technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | BMW Junior Seat tablette de sécurité | STOFF BLAU | X | 82220017359 | arrêté | Shop at ECS Tuning | ||||
| 05 | Housse de protection pour dossier | X | 82129408961 | arrêté | Shop at ECS Tuning | |||||
| 06 | Revêtement dossier BMW Junior Seat | STOFF ROT | 1 | 82129408964 | arrêté | Shop at ECS Tuning | ||||
| 07 | Revêt.coussin d.selle BMWJuniorSeat III | STOFF BLAU | 1 | 82220010113 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 08 | Revêtement tablette de sécurité | STOFF ROT | 1 | 82129408967 | arrêté | Shop at ECS Tuning | ||||
| 09 | pied support | JUNIOR SEAT | 1 | 82220139311 | arrêté | Shop at ECS Tuning | ||||
| 13 | Quicklock | X | 82220139315 | arrêté | Shop at ECS Tuning | |||||
| jusqu'au numéro de série 00009424 | ||||||||||
| 14 | Renvoi de ceinture gauche | X | 82220139316 | arrêté | Shop at ECS Tuning | |||||
| jusqu'au numéro de série 00009424 | ||||||||||
| 15 | Renvoi de ceinture droite | X | 82220139317 | arrêté | Shop at ECS Tuning | |||||
| jusqu'au numéro de série 00009424 | ||||||||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
