Galerie de toit for BMW 5 Series E39 525td (1998)

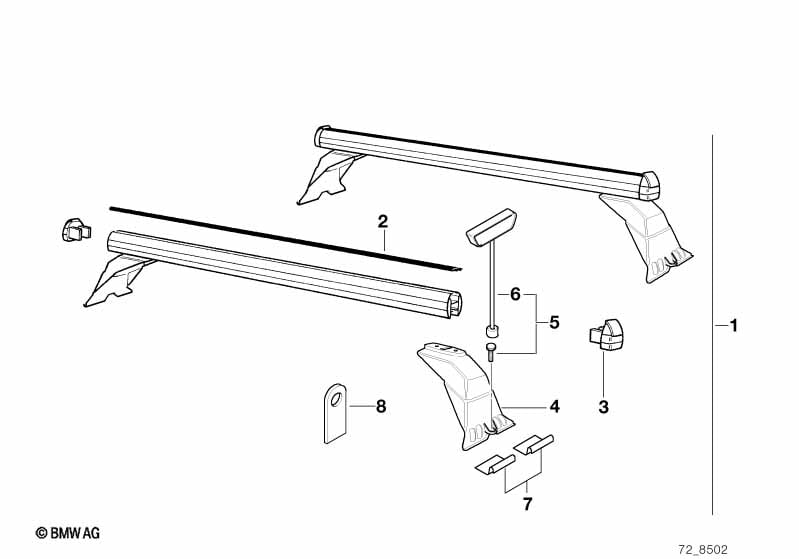

This Galerie de toit technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Barres de toit | 1 | 82719408587 | $222.08 | arrêté | Shop at ECS Tuning | ||||
| 02 | Recouvrement superieur | 2 | 82129413122 | $7.50 | arrêté | Shop at ECS Tuning | ||||
| 03 | Capuchon | 4 | 82719402947 | $1.50 | arrêté | Shop at ECS Tuning | ||||
| 04 | Pied-support devant a gauc/derriere a dr | 2 | 82790006017 | $35.00 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 04 | Pied-support devant a dr/derriere a gauc | 2 | 82790006018 | $36.50 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 05 | Jeu de clés avec vis | 1 | 82799405589 | $25.50 | arrêté | Shop at ECS Tuning | ||||
| 06 | Clé (Code) | 1 | 82799405012 | $11.75 | arrêté | Shop at ECS Tuning | ||||
| 07 | Feuille protectrice | 1 SATZ | 1 | 82799405590 | $10.00 | arrêté | Shop at ECS Tuning | |||
| 08 | Ouvreur de baguettes de toit | 1 | 82799405591 | $5.25 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
