Support de barre de toit for BMW 5 Series E39 525td (1998)

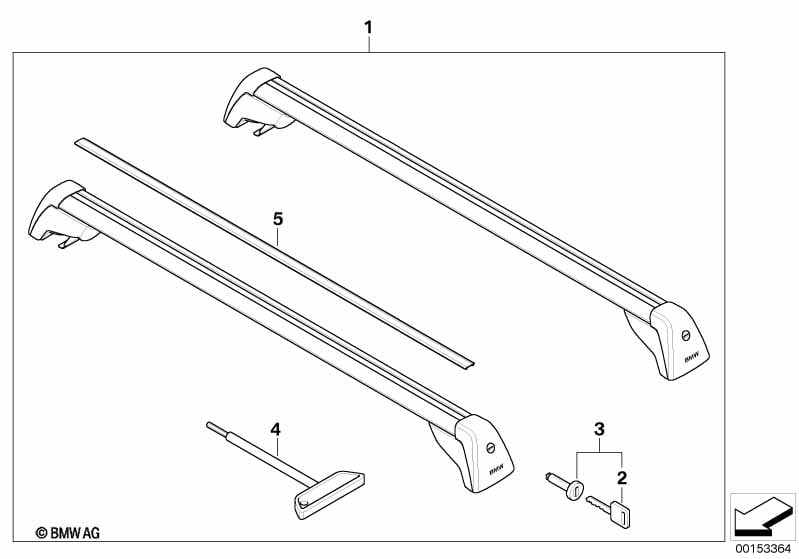

This Support de barre de toit technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Rails de toit |
S386A=Oui |
|||||||||
| 01 | Support de barre de toit | E39 | 1 | 82710415055 | $219.95 | arrêté | Shop at ECS Tuning | |||
| 02 | Clé (Code) | CODE 001...041 | 2 | 82720144049 | $8.50 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 03 | Cyl.de serrure avec clé | 4 | 82720303536 | $24.75 | arrêté | Shop at ECS Tuning | ||||
| 04 | Cle dynamometrique | 1 | 82720144051 | $11.00 | arrêté | Shop at ECS Tuning | ||||
| 05 | Moulure | 2 STK. | 2 | 82720144045 | $6.75 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
