Cintre universel for BMW 5 Series E39 525td (1998)

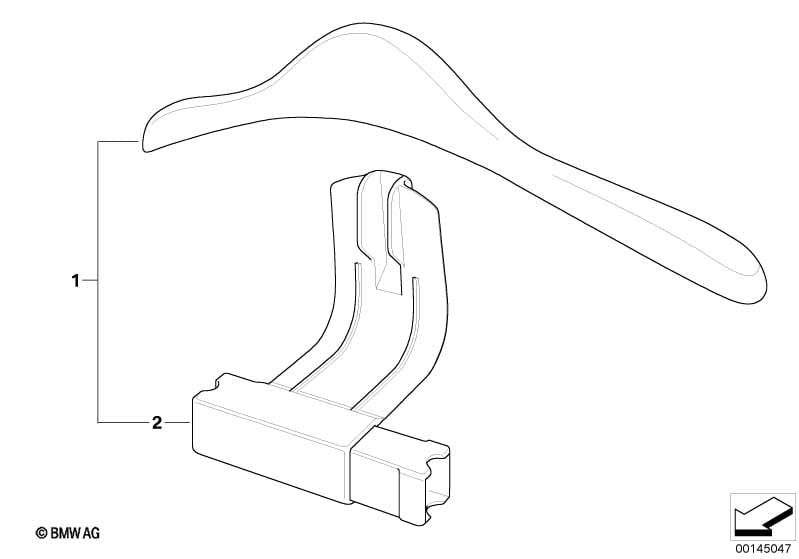

This Cintre universel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cintre universel | 1 | 51160009546 | $55.00 | arrêté | Shop at ECS Tuning | ||||
| 02 | Support | 1 | 51160027751 | $30.50 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525td Cintre universel?
- This technical diagram illustrates the Cintre universel within the Post-équipement/transformation/access. group for the 5 Series E39 525td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Cintre universel (Part #51160009546).
- Which models use the hardware listed in this Cintre universel?
- The hardware and components featured in the Cintre universel are specific to the 5 Series E39 525td produced during 1998. These technical specifications ensure that parts like the Cintre universel (51160009546) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cintre universel assembly?
- Each item in the Cintre universel corresponds to the numbered list below the illustration. For the 5 Series E39 525td, you can identify the Cintre universel by locating its position on the schematic, which then links to the official BMW part number 51160009546 for the Post-équipement/transformation/access. section.
