Remorque système d'arrimage for BMW 5 Series E39 525td (1998)

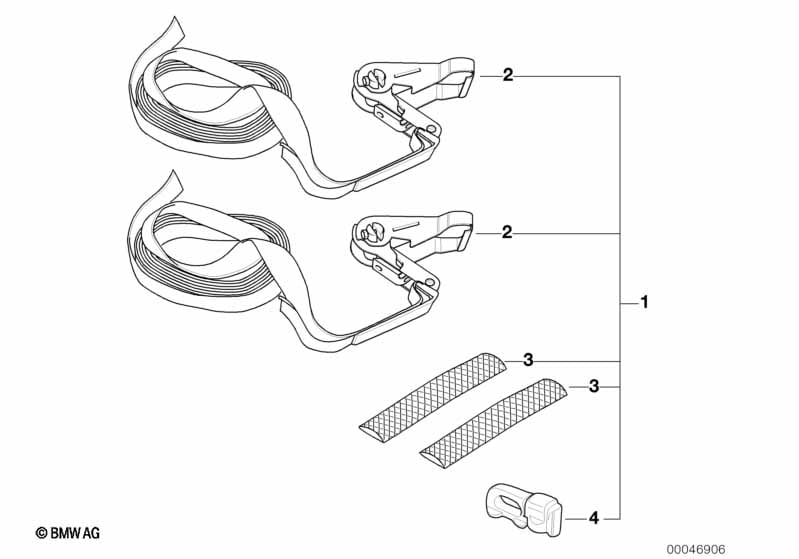

This Remorque système d'arrimage technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Module harnais | 1 | 86309415382 | $70.00 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Sangle-tendeur | 2 | 86309416266 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Protection contre frottement | 2 | 86309416267 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525td Remorque système d'arrimage?
- This technical diagram illustrates the Remorque système d'arrimage within the Post-équipement/transformation/access. group for the 5 Series E39 525td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Module harnais (Part #86309415382).
- Which models use the hardware listed in this Remorque système d'arrimage?
- The hardware and components featured in the Remorque système d'arrimage are specific to the 5 Series E39 525td produced during 1998. These technical specifications ensure that parts like the Module harnais (86309415382) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Remorque système d'arrimage assembly?
- Each item in the Remorque système d'arrimage corresponds to the numbered list below the illustration. For the 5 Series E39 525td, you can identify the Module harnais by locating its position on the schematic, which then links to the official BMW part number 86309415382 for the Post-équipement/transformation/access. section.
