Remorque rampe de charge for BMW 5 Series E39 525td (1998)

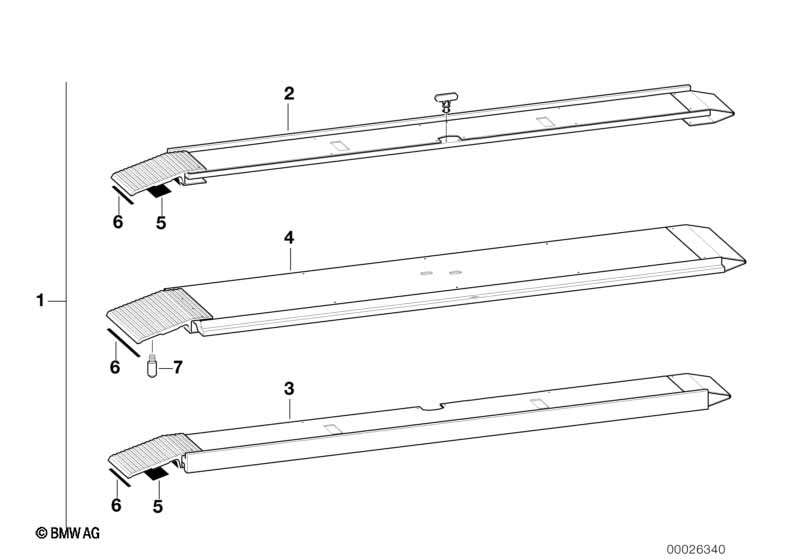

This Remorque rampe de charge technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rampe de charge | 1 | 86309410984 | $1319.00 | arrêté | Shop at ECS Tuning | ||||
| 02 | Revetement lateral droit | 1 | 86290000748 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Part.laterale gauche | 1 | 86290000749 | $318.06 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 04 | Partie centrale | 1 | 86290000750 | $318.06 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 05 | Bande d'étanchéité | 38X3 MM | 2 | 86290000746 | arrêté | Shop at ECS Tuning | ||||
| 06 | Bande d'étanchéité | 16X3 MM | 3 | 86290000745 | arrêté | Shop at ECS Tuning | ||||
| 07 | Boulon | 2 | 86290000747 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525td Remorque rampe de charge?
- This technical diagram illustrates the Remorque rampe de charge within the Post-équipement/transformation/access. group for the 5 Series E39 525td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Rampe de charge (Part #86309410984).
- Which models use the hardware listed in this Remorque rampe de charge?
- The hardware and components featured in the Remorque rampe de charge are specific to the 5 Series E39 525td produced during 1998. These technical specifications ensure that parts like the Rampe de charge (86309410984) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Remorque rampe de charge assembly?
- Each item in the Remorque rampe de charge corresponds to the numbered list below the illustration. For the 5 Series E39 525td, you can identify the Rampe de charge by locating its position on the schematic, which then links to the official BMW part number 86309410984 for the Post-équipement/transformation/access. section.
