Remorque supports de hayon for BMW 5 Series E39 525td (1998)

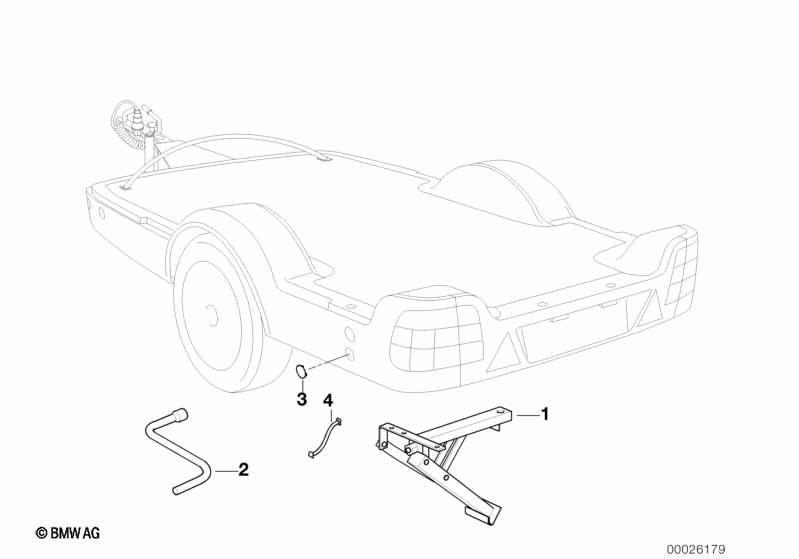

This Remorque supports de hayon technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kit de montage support de hayon | 1 | 86309415383 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 02 | Manivelle | 1 | 71121179953 | $14.56 | Shop at ECS Tuning | |||||
| 03 | Clapet de support de cric en appret | 2 | 51712234084 | $7.44 | Shop at ECS Tuning | |||||
| 04 | Goupille | 2 | 51718108229 | $0.50 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525td Remorque supports de hayon?
- This technical diagram illustrates the Remorque supports de hayon within the Post-équipement/transformation/access. group for the 5 Series E39 525td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Kit de montage support de hayon (Part #86309415383).
- Which models use the hardware listed in this Remorque supports de hayon?
- The hardware and components featured in the Remorque supports de hayon are specific to the 5 Series E39 525td produced during 1998. These technical specifications ensure that parts like the Kit de montage support de hayon (86309415383) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Remorque supports de hayon assembly?
- Each item in the Remorque supports de hayon corresponds to the numbered list below the illustration. For the 5 Series E39 525td, you can identify the Kit de montage support de hayon by locating its position on the schematic, which then links to the official BMW part number 86309415383 for the Post-équipement/transformation/access. section.
