Remorque:pièc.dét.tringl.de tir.de frein for BMW 5 Series E39 525td (1998)

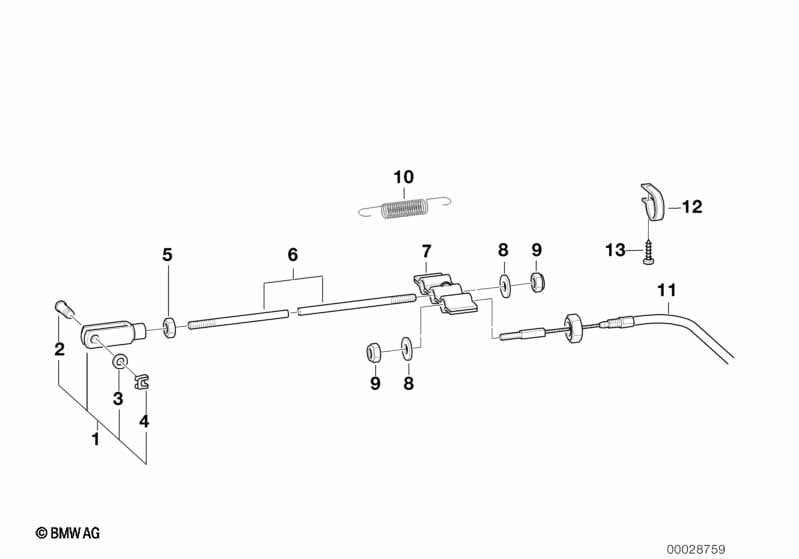

This Remorque:pièc.dét.tringl.de tir.de frein technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fourchette | M8 | 1 | 86199416639 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Boulon | 1 | 86199416630 | arrêté | Shop at ECS Tuning | |||||
| 03 | Rondelle | 1 | 86199416635 | arrêté | Shop at ECS Tuning | |||||
| 04 | Agrafe | 1 | 86199416634 | arrêté | Shop at ECS Tuning | |||||
| 05 | Ecrou à six pans | M8-8-ZNS3 | 1 | 07/2005 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 05 | Ecrou à six pans | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Ecrou à six pans | M8-ZNS | 1 | 07119922856 | $0.56 | arrêté | Shop at ECS Tuning | |||
| 06 | Tige de traction | M8 | 1 | 86199416644 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 07 | Palonnier de frein | 1 | 86199416645 | arrêté | Shop at ECS Tuning | |||||
| 08 | Rondelle | 21X8,5X2 MM | 3 | 86199416646 | arrêté | Shop at ECS Tuning | ||||
| 09 | Ecrou à six pans autobloquant | M8-8-ZNS3 | 3 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Ecrou à six pans autobloquant | M8-8-ZNS | 3 | 07129964675 | $0.56 | arrêté | Shop at ECS Tuning | |||
| 10 | Ressort de traction | 1 | 86199416647 | arrêté | Shop at ECS Tuning | |||||
| 11 | Câble Bowden complet | 2 | 86199416648 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 12 | Collier de tuyau | 1 | 86190001063 | $4.18 | arrêté | Shop at ECS Tuning | ||||
| 13 | Vis a tole tête bombee | ST4,8X16 SW | 1 | 07/2005 | 07119907446 | arrêté | Shop at ECS Tuning | |||
| 13 | Vis à tole tête bombee combinée | ST4, 8X16MM | 1 | 51419143799 | $0.22 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525td Remorque:pièc.dét.tringl.de tir.de frein?
- This technical diagram illustrates the Remorque:pièc.dét.tringl.de tir.de frein within the Post-équipement/transformation/access. group for the 5 Series E39 525td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Fourchette (Part #86199416639).
- Which models use the hardware listed in this Remorque:pièc.dét.tringl.de tir.de frein?
- The hardware and components featured in the Remorque:pièc.dét.tringl.de tir.de frein are specific to the 5 Series E39 525td produced during 1998. These technical specifications ensure that parts like the Fourchette (86199416639) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Remorque:pièc.dét.tringl.de tir.de frein assembly?
- Each item in the Remorque:pièc.dét.tringl.de tir.de frein corresponds to the numbered list below the illustration. For the 5 Series E39 525td, you can identify the Fourchette by locating its position on the schematic, which then links to the official BMW part number 86199416639 for the Post-équipement/transformation/access. section.
