Remorque pièces détachées frein de roue for BMW 5 Series E39 525td (1998)

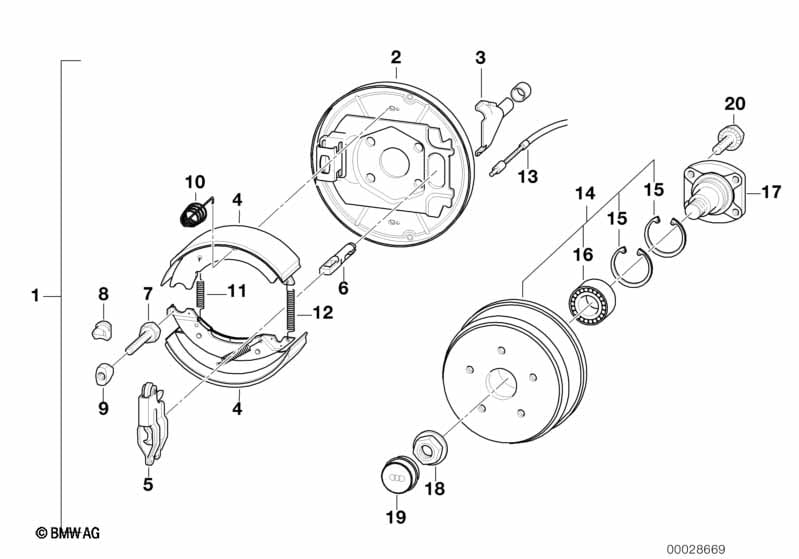

This Remorque pièces détachées frein de roue technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Frein de roue complète, gauche | 1 | 86199416652 | $382.95 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | Frein de roue complète, droit | 1 | 86199416653 | $382.95 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Plateau de freins | 2 | 86199416654 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Cuvette | 2 | 86199416656 | arrêté | Shop at ECS Tuning | |||||
| 04 | Jeu de segments de frein complet | 2 | 86199416657 | $204.23 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 05 | Dispositif d'écartement | 2 | 86199416658 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 06 | Anneau de remorquage | 2 | 86199416662 | arrêté | Shop at ECS Tuning | |||||
| 07 | Vis six pans | M10X32 | 2 | 07119915189 | $0.82 | Shop at ECS Tuning | ||||
| 08 | Axe de réglage | 2 | 86199416666 | arrêté | Shop at ECS Tuning | |||||
| 09 | Clavette | 2 | 86199416667 | arrêté | Shop at ECS Tuning | |||||
| 10 | Ressort de pression | 2 | 86199416668 | arrêté | Shop at ECS Tuning | |||||
| 11 | Ressort de traction, court | 2 | 86199416669 | arrêté | Shop at ECS Tuning | |||||
| 12 | Ressort de traction, long | 2 | 86199416670 | arrêté | Shop at ECS Tuning | |||||
| 13 | Câble Bowden complet | 2 | 86199416648 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 14 | Moyeu de frein cpl. | 2 | 86199416671 | $216.95 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 15 | Bague de securité | 4 | 86199416672 | arrêté | Shop at ECS Tuning | |||||
| 16 | Roulement à billes | 2 | 86199416673 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 17 | Essieu | 2 | 86199416674 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 18 | Ecrou | 2 | 86199416675 | arrêté | Shop at ECS Tuning | |||||
| 19 | Cache | 2 | 86199416676 | arrêté | Shop at ECS Tuning | |||||
| 20 | Vis | 12X1,5X32 MM | 8 | 86199416798 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
