Remorque: pièces détachées timon for BMW 5 Series E39 525td (1998)

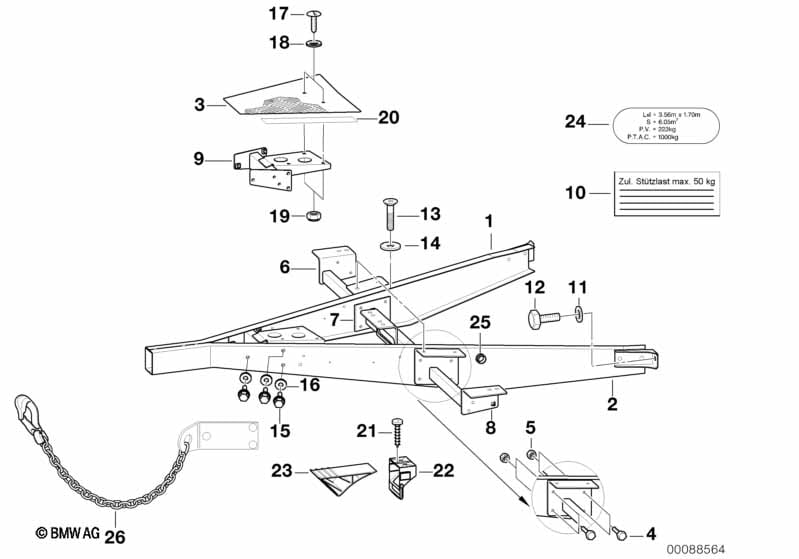

This Remorque: pièces détachées timon technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bras de timon droit | 1 | 86199416470 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 02 | Bras de timon gauche | 1 | 86199416469 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Marchepied | 1 | 86199416471 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 04 | Vis six pans avec rondelle | M8X25-Z9 | 4 | 07119915168 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Ecrou à six pans autobloquant | M8-8-ZNS3 | 4 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Ecrou à six pans autobloquant | M8-8-ZNS | 4 | 07129964675 | $0.56 | arrêté | Shop at ECS Tuning | |||
| 06 | Traverse avant droite | 1 | 86199416476 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 07 | Traverse avant centrale | 1 | 86199416475 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 08 | Traverse avant gauche | 1 | 86199416473 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 09 | Traverse timon | 1 | 86199416493 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 10 | Plaquette charge de timon | 1 | 86199416494 | arrêté | Shop at ECS Tuning | |||||
| 11 | Rondelle | 10,5X21X2 MM | 2 | 86199416906 | arrêté | Shop at ECS Tuning | ||||
| 12 | Vis six pans | M8X25 | 2 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Vis à tête bombée | M10X35 | 2 | 86199416907 | arrêté | Shop at ECS Tuning | ||||
| 14 | Rondelle | D=45 MM | 2 | 86199416909 | arrêté | Shop at ECS Tuning | ||||
| 15 | Vis six pans | M8X20-ZNS | 3 | 07119901120 | $0.60 | arrêté | Shop at ECS Tuning | |||
| 15 | Vis six pans | M8X20-ZNNIV SI | 3 | 07119903039 | Shop at ECS Tuning | |||||
| 16 | Plaque d'appui | A8,4-ZNS | 3 | 07119931019 | $0.40 | Shop at ECS Tuning | ||||
| 17 | Vis à tête bombée | M6X25MM | 2 | 86199416908 | arrêté | Shop at ECS Tuning | ||||
| 18 | Plaque d'appui | A6,4-ZNS | 2 | 07/2005 | 07119931018 | $0.40 | arrêté | Shop at ECS Tuning | ||
| 18 | Plaque d'appui | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 19 | Ecrou à six pans autobloquant | M6 ZNS | 2 | 07129900191 | $0.38 | arrêté | Shop at ECS Tuning | |||
| 19 | Ecrou à six pans | M6-8-ZNS3 | 2 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 19 | Ecrou à six pans | M6-8-ZNNIV SI | 2 | 07129905817 | arrêté | Shop at ECS Tuning | ||||
| 20 | Bande d'étanchéité | 1,2M; 15X1MM | 1 | 86199416783 | arrêté | Shop at ECS Tuning | ||||
| 21 | Vis a tole tête bombee | ST4,8X16 SW | 4 | 07/2005 | 07119907446 | arrêté | Shop at ECS Tuning | |||
| 21 | Vis à tole tête bombee combinée | ST4, 8X16MM | 4 | 51419143799 | $0.22 | Shop at ECS Tuning | ||||
| 22 | Support de cale | 2 | 86199416962 | arrêté | Shop at ECS Tuning | |||||
| 23 | Cale | 2 | 86199416963 | arrêté | Shop at ECS Tuning | |||||
| 24 | Panneau | 1 | 86199416964 | arrêté | Shop at ECS Tuning | |||||
| 25 | Passe-câble | 1 | 86199416944 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
