Remorque:pièces détach. disp. de relev. for BMW 5 Series E39 525td (1998)

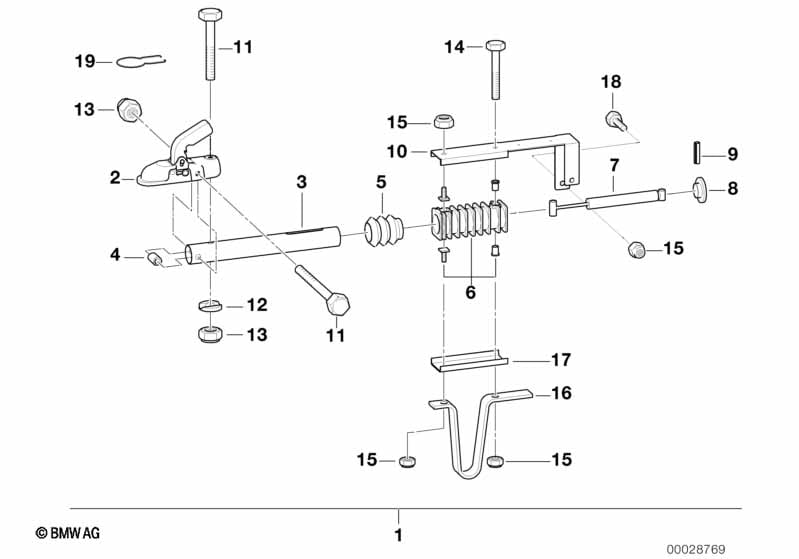

This Remorque:pièces détach. disp. de relev. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dispositif de relevage cpl. | 1 | 86199416602 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 02 | Accouplement de remorque | 1 | 86199416603 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Tube de remorquage | 1 | 86199416604 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 04 | Manchon entretoise | 37 MM | 1 | 86199416605 | arrêté | Shop at ECS Tuning | ||||
| 05 | Soufflet | 1 | 86199416606 | arrêté | Shop at ECS Tuning | |||||
| 06 | Coussinet lisse | 1 | 86199416607 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 07 | Amortisseur | 1 | 86199416608 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 08 | Butée | 1 | 86199416609 | arrêté | Shop at ECS Tuning | |||||
| 09 | Douille de serrage | 4X10 MM | 2 | 86199416610 | arrêté | Shop at ECS Tuning | ||||
| 10 | Boîtiers de renvoi supérieure | 1 | 86199416611 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 11 | Vis six pans | M12X70 | 2 | 07119912859 | $1.86 | arrêté | Shop at ECS Tuning | |||
| 12 | Vitre de forme | 1 | 86199416612 | arrêté | Shop at ECS Tuning | |||||
| 13 | Ecrou à six pans autobloquant | M12-10 ZN | 2 | 07/2005 | 07129964661 | $0.43 | arrêté | Shop at ECS Tuning | ||
| 13 | Ecrou à six pans autobloquant | M12-10-ZNS3 | 2 | 07119905753 | $1.64 | Shop at ECS Tuning | ||||
| 14 | Vis six pans | M10X95 | 1 | 07119912695 | $1.98 | arrêté | Shop at ECS Tuning | |||
| 15 | Ecrou à six pans autobloquant | M10 | 4 | 03/2004 | 07129900580 | $0.75 | arrêté | Shop at ECS Tuning | ||
| 15 | Ecrou à six pans | M10-10-ZNS3 | 4 | 07129904473 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Support | 383 MM | 1 | 86199416613 | arrêté | Shop at ECS Tuning | ||||
| 17 | Support | 170 X 85 MM | 1 | 86199416614 | arrêté | Shop at ECS Tuning | ||||
| 18 | Vis six pans | M10X1X20-8.8 | 1 | 07119902270 | $8.83 | Shop at ECS Tuning | ||||
| 19 | Support de raccord a fiche | 1 | 86199416615 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
