Remorque: pièces dét. boîtiers de renvoi for BMW 5 Series E39 525td (1998)

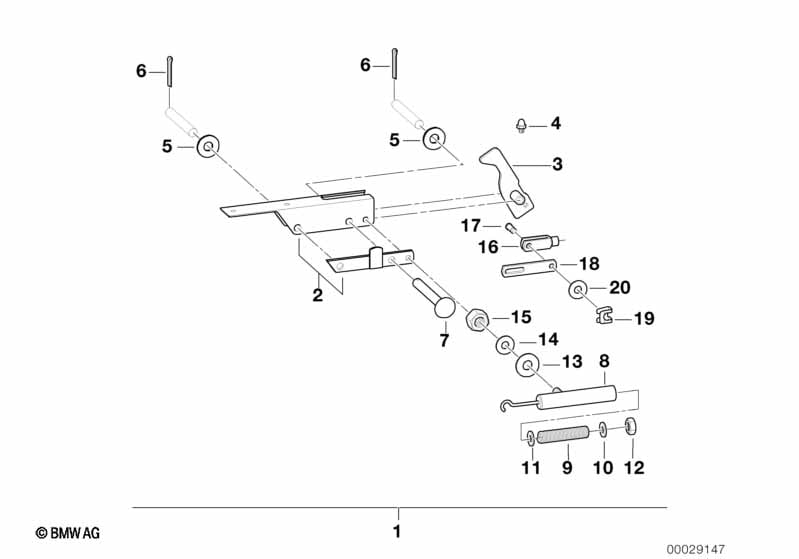

This Remorque: pièces dét. boîtiers de renvoi technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Boîtiers de renvoi cpl. | 1 | 86199416616 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| y compris levier de frein à main cpl. | ||||||||||
| 02 | Tôle de forme | 1 | 86199416617 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Levier de renvoi | 1 | 86199416618 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 04 | Graisseur | 1 | 86199416619 | arrêté | Shop at ECS Tuning | |||||
| 05 | Rondelle | 14,5X 29X1,25MM | 1 | 86199416620 | arrêté | Shop at ECS Tuning | ||||
| 06 | Goupille | 4 X 32 MM | 1 | 86199416621 | arrêté | Shop at ECS Tuning | ||||
| 07 | Boulon | 1 | 86199416622 | arrêté | Shop at ECS Tuning | |||||
| 08 | Tube-support | 1 | 86199416623 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 09 | Ressort de pression | 1 | 86199416624 | $16.00 | arrêté | Shop at ECS Tuning | ||||
| 10 | Rondelle | 1 | 86199416626 | arrêté | Shop at ECS Tuning | |||||
| 11 | Rondelle | 1 | 86199416627 | arrêté | Shop at ECS Tuning | |||||
| 12 | Ecrou à six pans autobloquant | M10 | 1 | 03/2004 | 07129900580 | $0.75 | arrêté | Shop at ECS Tuning | ||
| 12 | Ecrou à six pans | M10-10-ZNS3 | 1 | 07129904473 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Rondelle, plastique | 1 | 86199416628 | arrêté | Shop at ECS Tuning | |||||
| 14 | Plaque d'appui | A13/HV-ZNS | 1 | 07119901766 | $0.30 | arrêté | Shop at ECS Tuning | |||
| 15 | Ecrou à six pans | M12 | 1 | 07/2005 | 07119922849 | $0.71 | arrêté | Shop at ECS Tuning | ||
| 15 | Ecrou à six pans | M12-8-ZNS3 | 1 | 07119904038 | $0.75 | Shop at ECS Tuning | ||||
| 16 | Fourchette | 1 | 86199416629 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 17 | Boulon | 1 | 86199416630 | arrêté | Shop at ECS Tuning | |||||
| 18 | Bride de fixation | 1 | 86199416633 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 19 | Agrafe | 1 | 86199416634 | arrêté | Shop at ECS Tuning | |||||
| 20 | Rondelle | 1 | 86199416635 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
