Remorque pièces détachées plancher for BMW 5 Series E39 525td (1998)

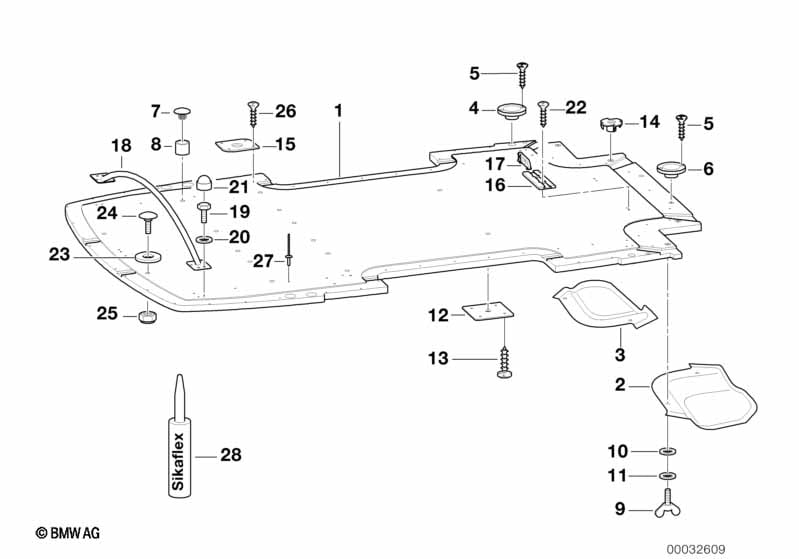

This Remorque pièces détachées plancher technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plaque de base | 1 | 86199416787 | arrêté | Shop at ECS Tuning | |||||
| 02 | Protection d'optique gauche | 1 | 86199416789 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Protection d'optique droit | 1 | 86199416788 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 04 | Douille en matière plastique | 4 | 86199416790 | arrêté | Shop at ECS Tuning | |||||
| 05 | Vis a tole a tete fraisee | 3,5X13 MM | X | 86199416951 | arrêté | Shop at ECS Tuning | ||||
| 06 | Douille métallique | 2 | 86199416791 | arrêté | Shop at ECS Tuning | |||||
| 07 | Bouchon | X | 86199416792 | $0.25 | arrêté | Shop at ECS Tuning | ||||
| 08 | Manchon entretoise | 14,5 MM | X | 86199416793 | arrêté | Shop at ECS Tuning | ||||
| 09 | Vis à oreilles | M6X20 | 4 | 86199416794 | arrêté | Shop at ECS Tuning | ||||
| 10 | Rondelle caoutchouc | 20X6X3MM | 10 | 86199416795 | arrêté | Shop at ECS Tuning | ||||
| 11 | Plaque d'appui | A6,4-ZNS | 4 | 07/2005 | 07119931018 | $0.40 | arrêté | Shop at ECS Tuning | ||
| 11 | Plaque d'appui | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 12 | Support | 2 | 86199416796 | arrêté | Shop at ECS Tuning | |||||
| 13 | Vis a tole tête bombee | ST3,5X16 | 8 | 07119907783 | $0.09 | arrêté | Shop at ECS Tuning | |||
| 14 | Ecrou à frapper | M6 | 4 | 86190000757 | $51.34 | arrêté | Shop at ECS Tuning | |||
| 15 | Console prise de courant 12V | 1 | 86190000758 | $51.34 | arrêté | Shop at ECS Tuning | ||||
| 16 | Plaque d'arrimage | 76X45,5 MM | 8 | 86190000759 | $51.34 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 17 | Boucle d'arrimage | 8 | 86199416290 | $10.75 | arrêté | Shop at ECS Tuning | ||||
| 18 | Etrier | 1 | 86190000760 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 19 | Vis six pans avec rondelle | M8X35-Z3 | 2 | 07119912492 | $0.33 | Shop at ECS Tuning | ||||
| 20 | Rondelle | 21X8,5X2 MM | 2 | 86199416646 | arrêté | Shop at ECS Tuning | ||||
| 21 | Capuchon de protection | 2 | 86190000761 | arrêté | Shop at ECS Tuning | |||||
| 22 | Vis à tête noyée | M8X35 | X | 86190000762 | $0.75 | arrêté | Shop at ECS Tuning | |||
| 23 | Rondelle | D=45 MM | 2 | 86199416909 | arrêté | Shop at ECS Tuning | ||||
| 24 | Vis à tête bombée | M10X35 | 2 | 86199416907 | arrêté | Shop at ECS Tuning | ||||
| 25 | Ecrou à six pans autobloquant | M10 | 2 | 03/2004 | 07129900580 | $0.75 | arrêté | Shop at ECS Tuning | ||
| 25 | Ecrou à six pans | M10-10-ZNS3 | 2 | 07129904473 | $0.47 | Shop at ECS Tuning | ||||
| 26 | Vis a tole a tete fraisee | 3,5X16 MM | 2 | 86190000763 | arrêté | Shop at ECS Tuning | ||||
| 27 | Faux rivet | 6,4X26 MM | X | 86199416949 | arrêté | Shop at ECS Tuning | ||||
| 28 | Sikaflex braun | 310ML | 1 | 86199416797 | $33.76 | arrêté, +vieille matière | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
