Remorque piéces gaine rampe de charge for BMW 5 Series E39 525td (1998)

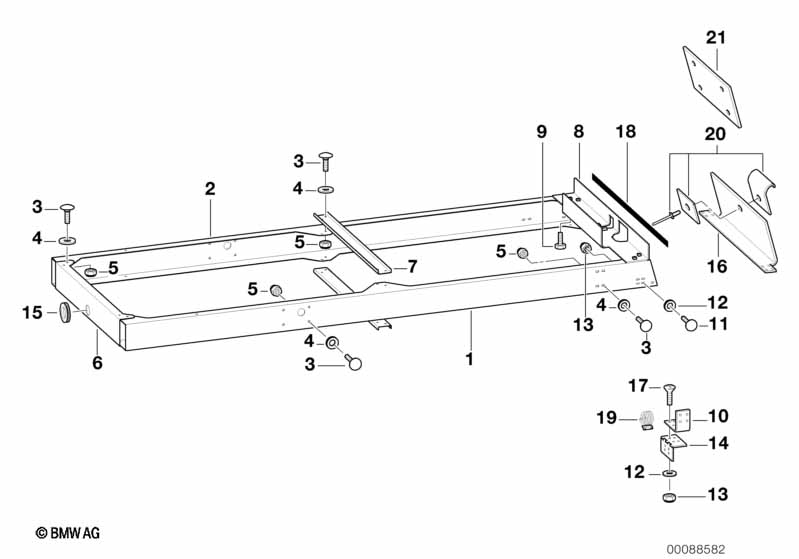

This Remorque piéces gaine rampe de charge technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rail gauche | 1 | 86190000771 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 02 | Rail droit | 1 | 86190000772 | $111.60 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 03 | Vis à tête bombée | M6X16 | X | 07119910408 | $0.80 | Shop at ECS Tuning | ||||
| 04 | Plaque d'appui | A6,4-ZNS | X | 07/2005 | 07119931018 | $0.40 | arrêté | Shop at ECS Tuning | ||
| 04 | Plaque d'appui | A6,4-ZNNIV SI | X | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Ecrou à six pans autobloquant | M6 ZNS | X | 07129900191 | $0.38 | arrêté | Shop at ECS Tuning | |||
| 05 | Ecrou à six pans | M6-8-ZNS3 | X | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 05 | Ecrou à six pans | M6-8-ZNNIV SI | X | 07129905817 | arrêté | Shop at ECS Tuning | ||||
| 06 | Traverse avant | 1 | 86190000773 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 07 | Traverse centrale | 2 | 86190000774 | arrêté | Shop at ECS Tuning | |||||
| 08 | Traverse arrière cpl. | 1 | 86190000775 | $267.84 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 09 | Vis six pans | M6X16-8.8-ZNS | 4 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
| 10 | Equerre d'appui | 2 | 86190000776 | $42.41 | arrêté | Shop at ECS Tuning | ||||
| 11 | Vis à tête bombée | M5X16 | 4 | 07119910417 | $1.93 | arrêté | Shop at ECS Tuning | |||
| 12 | Plaque d'appui | A5,3-140 HV-ZNS | X | 01/2003 | 07119931029 | $0.40 | arrêté | Shop at ECS Tuning | ||
| 12 | Rondelle | 10X5,3X1-200 HV | X | 07119904206 | Shop at ECS Tuning | |||||
| 12 | Plaque d'appui | 5.3-140 HV-ZNS | X | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Ecrou à six pans autobloquant | M5 | X | 09/2004 | 07129964603 | $0.16 | arrêté | Shop at ECS Tuning | ||
| 13 | Ecrou à six pans | M5-8-ZNNIV SI | X | 07129904475 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Charniere | 2 | 86190000777 | $42.41 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 15 | Passe-câble | 1 | 86190004167 | arrêté | Shop at ECS Tuning | |||||
| 16 | Clapet | 1 | 86190000778 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Poignee complete | 1 | 86190004876 | $13.95 | arrêté | Shop at ECS Tuning | ||||
| 17 | Vis a tete fraisee et bombee | M5X16 | X | 07119928488 | $0.40 | arrêté | Shop at ECS Tuning | |||
| 17 | Vis à tête noyée | M5X16-4.8-SW | X | 46622313516 | $0.58 | Shop at ECS Tuning | ||||
| 18 | Bande d'étanchéité | 1,2M; 15X1MM | 1 | 86199416783 | arrêté | Shop at ECS Tuning | ||||
| 19 | Ressort de fermeture | 2 | 86190000779 | arrêté | Shop at ECS Tuning | |||||
| 20 | Poignee complete | 1 | 86190004876 | $13.95 | arrêté | Shop at ECS Tuning | ||||
| Série à partir du n° de châssis WW425107 | ||||||||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
