Remorque pièces obturateur rampe charge for BMW 5 Series E39 525td (1998)

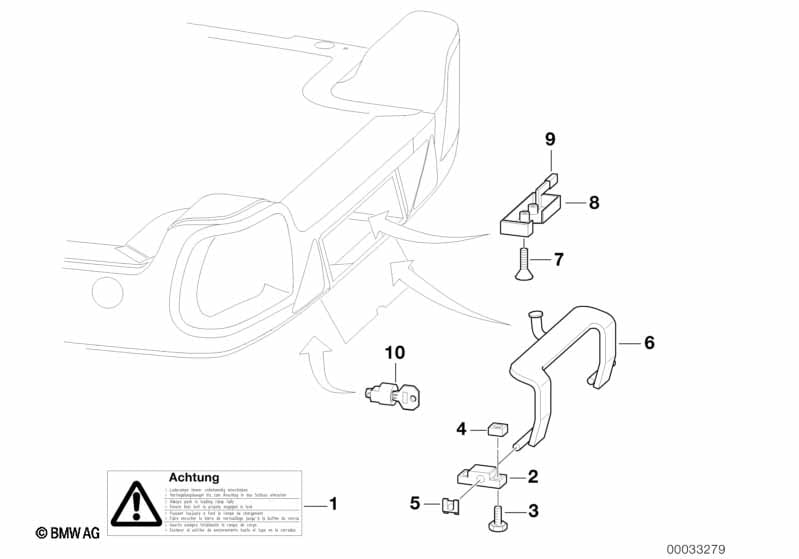

This Remorque pièces obturateur rampe charge technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panneau | 1 | 86190002054 | $2.75 | arrêté | Shop at ECS Tuning | ||||
| 02 | Support | 2 | 86190002055 | $18.75 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 03 | Vis six pans | M6X16-8.8-ZNS | 4 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Ecrou 4 pans | M6 | 4 | 86190002058 | $0.25 | arrêté | Shop at ECS Tuning | |||
| 05 | Agrafe | 2 | 86190002059 | $0.75 | arrêté | Shop at ECS Tuning | ||||
| 06 | Etrier de fermeture | 1 | 86190002061 | $55.50 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 07 | Vis à tête noyée | M8X35 | 2 | 86190000762 | $0.75 | arrêté | Shop at ECS Tuning | |||
| 08 | Serrure à pêne pivotant | 1 | 86190002060 | $61.50 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 09 | Capuchon PVC | ROT | 1 | 86190002062 | $2.25 | arrêté | Shop at ECS Tuning | |||
| 10 | Serrure avec clef | 1 | 86190002056 | $17.00 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
