Remorque:pièc.dét.prot.contre l.collis. for BMW 5 Series E39 525td (1998)

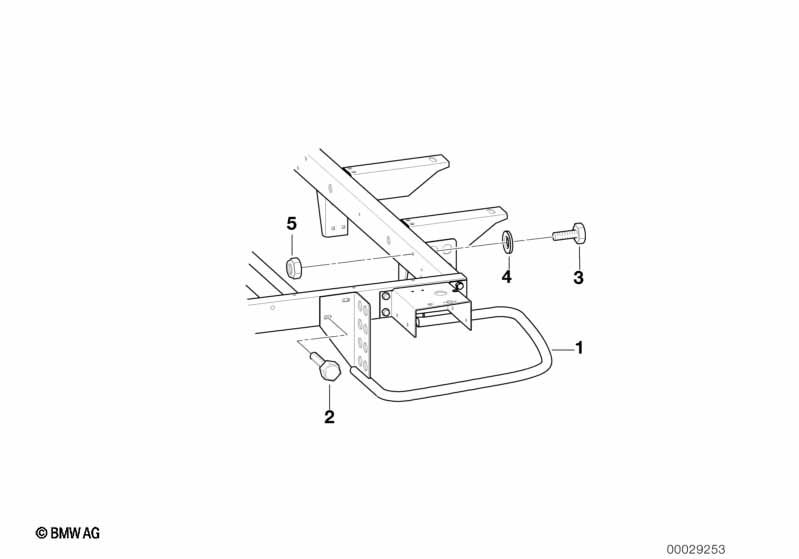

This Remorque:pièc.dét.prot.contre l.collis. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection contre les collisions gauche | 1 | 86199416879 | $136.15 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | Protection contre les collisions droite | 1 | 86199416880 | $136.15 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Vis à tête hexagonale à autoserrage | M8 X 25 | 2 | 86199416914 | $1.12 | arrêté | Shop at ECS Tuning | |||
| 03 | Vis six pans avec rondelle | M8X55-Z1 | 2 | 06/1999 | 07119912522 | $0.55 | arrêté | Shop at ECS Tuning | ||
| 03 | Vis six pans avec rondelle | M8X55-Z1 | 2 | 07/2005 | 07119902192 | $0.76 | arrêté | Shop at ECS Tuning | ||
| 03 | Vis six pans avec rondelle | M8X55-U1 | 2 | 07119905391 | $1.27 | Shop at ECS Tuning | ||||
| 04 | Plaque d'appui | A8,4-ZNS | 2 | 07119931019 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Ecrou à six pans autobloquant | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Ecrou à six pans autobloquant | M8-8-ZNS | 2 | 07129964675 | $0.56 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
