Remorque: pièces détachée supp. de hayon for BMW 5 Series E39 525td (1998)

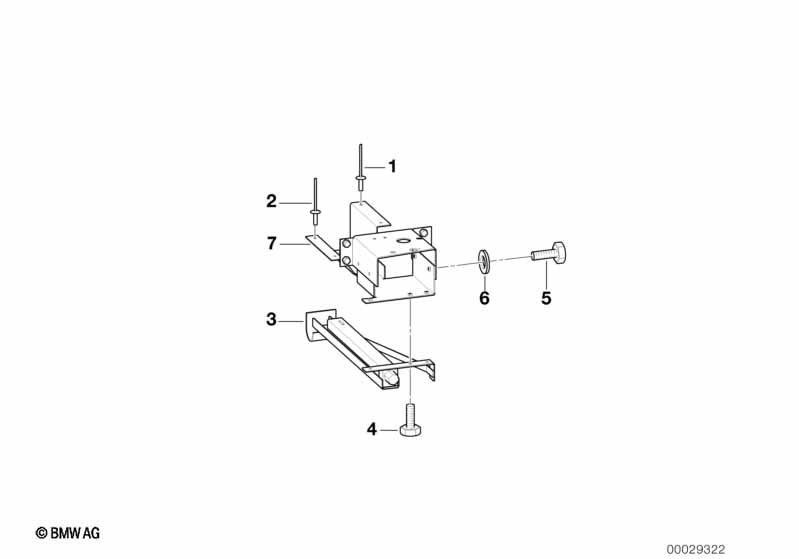

This Remorque: pièces détachée supp. de hayon technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Faux rivet | 6,4X26 MM | 4 | 86199416949 | arrêté | Shop at ECS Tuning | ||||
| 02 | Faux rivet | 6,4X12,2 MM | 6 | 86199416950 | arrêté | Shop at ECS Tuning | ||||
| 03 | Appui de hayon gauche, détaché | 1 | 86199416941 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Appui de hayon droit, détaché | 1 | 86199416942 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 04 | Vis à tête hexagonale à autoserrage | M8 X 25 | 8 | 86199416914 | $1.12 | arrêté | Shop at ECS Tuning | |||
| 05 | Vis six pans | M6X16-8.8-ZNS | 8 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
| 06 | Plaque d'appui | A6,4-ZNS | 8 | 07/2005 | 07119931018 | $0.40 | arrêté | Shop at ECS Tuning | ||
| 06 | Plaque d'appui | A6,4-ZNNIV SI | 8 | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Appui droit | 1 | 86199416939 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 07 | Support gauche | 1 | 86199416940 | arrêté, +vieille matière | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
