Remorque: pièc.dét.pièc.en mat.plastique for BMW 5 Series E39 525td (1998)

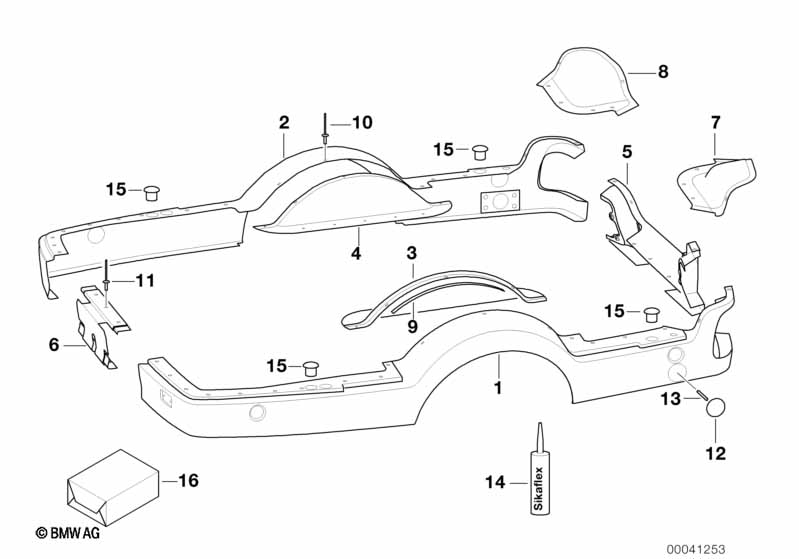

This Remorque: pièc.dét.pièc.en mat.plastique technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tablier gauche | 1 | 86199416693 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 02 | Tablier droit | 1 | 86199416692 | $951.39 | arrêté | Shop at ECS Tuning | ||||
| 03 | Passage de roue gauche | 1 | 86199416695 | $191.95 | arrêté | Shop at ECS Tuning | ||||
| 04 | Passage de roue droit | 1 | 86199416694 | $174.95 | arrêté | Shop at ECS Tuning | ||||
| 05 | Tablier arrière | 1 | 86199416696 | $535.68 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 06 | Tablier avant | 1 | 86199416697 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 07 | Boîtier de feu gauche | 1 | 86199416699 | $168.52 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 08 | Boîtier de feu droit | 1 | 86199416698 | $168.52 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 09 | Bande d'étanchéité | 1,2M; 15X1MM | 1 | 86199416783 | arrêté | Shop at ECS Tuning | ||||
| 10 | Faux rivet | 4,8 X 15,5 MM | X | 86199416785 | $1.33 | arrêté | Shop at ECS Tuning | |||
| 11 | Faux rivet | 4,8 X 26 MM | X | 86199416786 | $0.69 | arrêté | Shop at ECS Tuning | |||
| 12 | Clapet de support de cric en appret | 2 | 51712234084 | $7.44 | Shop at ECS Tuning | |||||
| 13 | Goupille | 2 | 51718108229 | $0.50 | Shop at ECS Tuning | |||||
| 14 | Masse d'étanchéité polyuréthane | WEISS, 310 ML | 1 | 07/2005 | 81229407313 | $17.43 | arrêté | Shop at ECS Tuning | ||
| 14 | Mastic d'étanchéité polyuréthane blanc | 310ML | 1 | 07/2005 | 83190414598 | arrêté | Shop at ECS Tuning | |||
| 14 | Mastic d'étanchéité polyuréthane blanc | 310ML | 1 | 83192210419 | arrêté | Shop at ECS Tuning | ||||
| 15 | Bouchon | 4 | 86190004552 | arrêté | Shop at ECS Tuning | |||||
| 16 | Kit de reparation | 1 | 86190004872 | arrêté, +vieille matière | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525td Remorque: pièc.dét.pièc.en mat.plastique?
- This technical diagram illustrates the Remorque: pièc.dét.pièc.en mat.plastique within the Post-équipement/transformation/access. group for the 5 Series E39 525td produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Tablier gauche (Part #86199416693).
- Which models use the hardware listed in this Remorque: pièc.dét.pièc.en mat.plastique?
- The hardware and components featured in the Remorque: pièc.dét.pièc.en mat.plastique are specific to the 5 Series E39 525td produced during 1998. These technical specifications ensure that parts like the Tablier gauche (86199416693) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Remorque: pièc.dét.pièc.en mat.plastique assembly?
- Each item in the Remorque: pièc.dét.pièc.en mat.plastique corresponds to the numbered list below the illustration. For the 5 Series E39 525td, you can identify the Tablier gauche by locating its position on the schematic, which then links to the official BMW part number 86199416693 for the Post-équipement/transformation/access. section.
