Pieces de hardtop : rails de toit for BMW 5 Series E39 525td (1998)

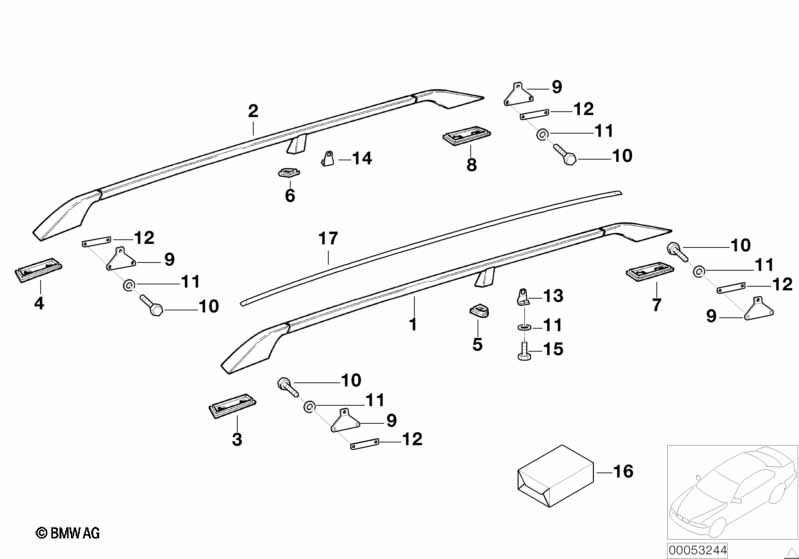

This Pieces de hardtop : rails de toit technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Rails uniquement pour E36/3 et capot de remorque |
||||||||||
| 01 | Barre de toit gauche | 1 | 51138185189 | $135.47 | arrêté | Shop at ECS Tuning | ||||
| 02 | Barre de toit droit | 1 | 51138185190 | $135.47 | Shop at ECS Tuning | |||||
| Support adapté uniquement à E36/3 et capot du Multi-Trailer |
||||||||||
| 03 | Appui de barre de toit avant gauche | 1 | 51138203391 | $4.98 | Shop at ECS Tuning | |||||
| 04 | Appui de barre de toit | 1 | 51138203392 | $4.98 | Shop at ECS Tuning | |||||
| 05 | Appui de barre de toit central gauche | 1 | 51138203393 | $2.59 | Shop at ECS Tuning | |||||
| 06 | Appui de barre de toit central droit | 1 | 51138203394 | $2.89 | Shop at ECS Tuning | |||||
| 07 | Appui de barre de toit arrière gauche | 1 | 51138203395 | $4.98 | Shop at ECS Tuning | |||||
| 08 | Appui de barre de toit arrière droit | 1 | 51138203396 | $4.98 | Shop at ECS Tuning | |||||
| 09 | Adaptateur | 4 | 86290008919 | $18.41 | arrêté | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M6X25-ZNS | 8 | 07119913018 | $0.38 | arrêté | Shop at ECS Tuning | |||
| 10 | Vis six pans | M6X25 | 8 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 11 | Plaque d'appui | A6,4-ZNS | X | 08/2006 | 07119931018 | $0.40 | arrêté | Shop at ECS Tuning | ||
| 11 | Plaque d'appui | A6,4-ZNNIV SI | X | 07119904202 | Shop at ECS Tuning | |||||
| 12 | Entretoise | 80X15MM | 4 | 86290008920 | $4.07 | arrêté | Shop at ECS Tuning | |||
| 13 | Adaptateur gauche | 1 | 86290008921 | $8.70 | arrêté | Shop at ECS Tuning | ||||
| 14 | Adaptateur droit | 1 | 86290008922 | $8.70 | arrêté | Shop at ECS Tuning | ||||
| 15 | Vis six pans | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 15 | Vis six pans | M6X12-ZNS | 2 | 07119913014 | $0.60 | arrêté | Shop at ECS Tuning | |||
| 16 | Vis | M8X15 | 1 | 51138183319 | $4.08 | Shop at ECS Tuning | ||||
| 17 | Moulure en caoutchouc | L=1724 MM | 1 | 86290008923 | $81.00 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 17 | Moulure en caoutchouc | L=1709MM | 2 | 86290008924 | $81.00 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 17 | Moulure en caoutchouc | L=1681MM | 2 | 86290008925 | $81.00 | arrêté, +vieille matière | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
