Pieces de hardtop : abattant lateral for BMW 5 Series E39 525td (1998)

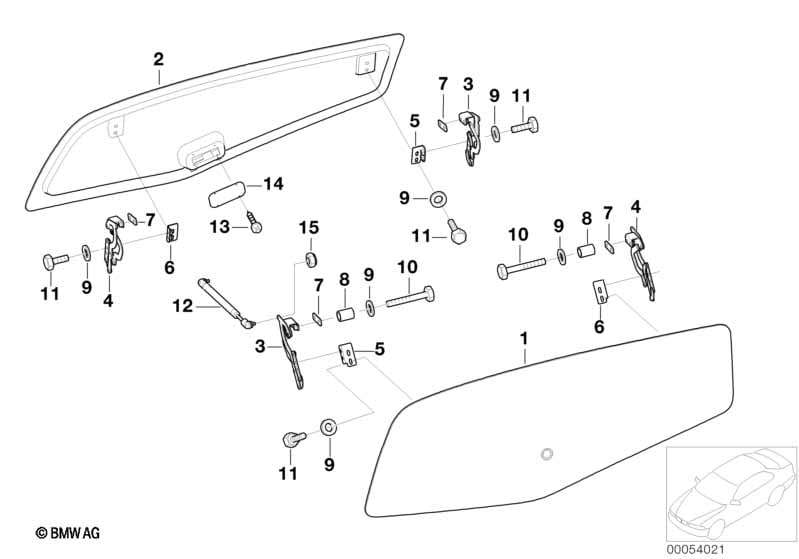

This Pieces de hardtop : abattant lateral technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Abattant latéral gauche | 1 | 86290008941 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 02 | Abattant latéral droit | 1 | 86290008942 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Charniere gauche | 2 | 86290008943 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 04 | Charniere droite | 2 | 86290008944 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 05 | Angle de réglage gauche | 2 | 86290008945 | arrêté | Shop at ECS Tuning | |||||
| 06 | Angle de réglage droit | 2 | 86290008946 | arrêté | Shop at ECS Tuning | |||||
| 07 | Entretoise | 56,2X19MM | 4 | 86290008947 | arrêté | Shop at ECS Tuning | ||||
| 08 | Manchon entretoise | L=27MM | 4 | 86290008948 | arrêté | Shop at ECS Tuning | ||||
| 09 | Plaque d'appui | A8,4-ZNS | X | 07119931019 | $0.40 | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M8X50 | 8 | 07119912517 | $0.82 | Shop at ECS Tuning | ||||
| 11 | Vis six pans | M8X20-ZNS | X | 07119901120 | $0.60 | arrêté | Shop at ECS Tuning | |||
| 11 | Vis six pans | M8X20-ZNNIV SI | X | 07119903039 | Shop at ECS Tuning | |||||
| 12 | Ressort pneumatique | 300 N | 2 | 86290008949 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 13 | Vis a tole tête bombee | ST3,5X8 | X | 07119900281 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Couvercle d'abattant latéral | 130X64,5MM | 2 | 86290008846 | arrêté | Shop at ECS Tuning | ||||
| 15 | Ecrou à six pans autobloquant | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Ecrou à six pans autobloquant | M8-8-ZNS | 2 | 07129964675 | $0.56 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
