Pieces de hardtop : abattant arriere for BMW 5 Series E39 525td (1998)

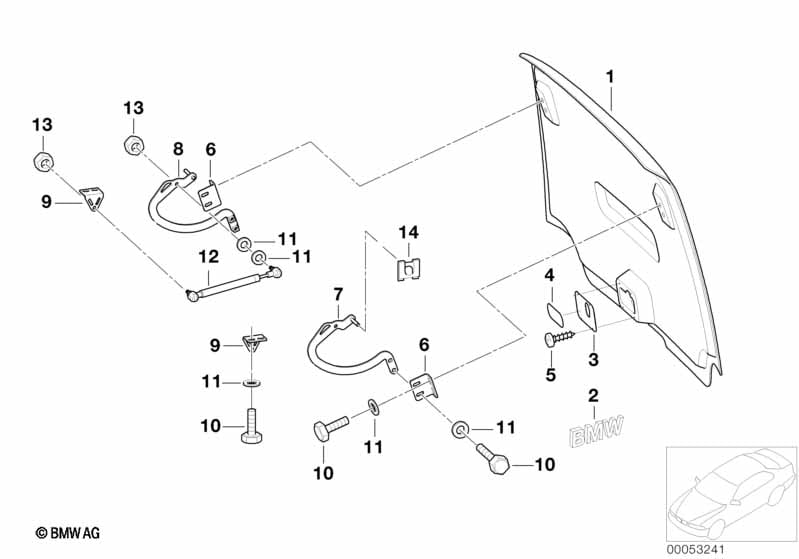

This Pieces de hardtop : abattant arriere technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Capôt de coffre arrière | 1 | 86290008768 | arrêté | Shop at ECS Tuning | |||||
| 02 | Emblème BMW | 1 | 51148123297 | $28.78 | Shop at ECS Tuning | |||||
| 02 | Monogramme | 1 | 86199416544 | $11.00 | arrêté | Shop at ECS Tuning | ||||
| 03 | Couvercle d'abattant arrière | 135X76MM | 1 | 86290008769 | arrêté | Shop at ECS Tuning | ||||
| 04 | Panneau | 1 | 86290008770 | arrêté | Shop at ECS Tuning | |||||
| 05 | Vis a tole tête bombee | ST3,5X8 | 4 | 07119900281 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Angle de réglage | 2 | 86290008771 | arrêté | Shop at ECS Tuning | |||||
| 07 | Charniere gauche | 1 | 86290008772 | arrêté | Shop at ECS Tuning | |||||
| 08 | Charniere droite | 1 | 86290008773 | arrêté | Shop at ECS Tuning | |||||
| 09 | Equerre d'appui | 2 | 86290008774 | arrêté | Shop at ECS Tuning | |||||
| 10 | Vis six pans | M8X20-ZNS | X | 07119901120 | $0.60 | arrêté | Shop at ECS Tuning | |||
| 10 | Vis six pans | M8X20-ZNNIV SI | X | 07119903039 | Shop at ECS Tuning | |||||
| 11 | Plaque d'appui | A8,4-ZNS | X | 07119931019 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Ressort pneumatique | 400 N | 2 | 86290008775 | $34.75 | arrêté | Shop at ECS Tuning | |||
| 13 | Ecrou à six pans | M8-04-2-ZNS | 4 | 03/2003 | 07119921104 | $0.56 | arrêté | Shop at ECS Tuning | ||
| 13 | Ecrou à six pans | M8-05-ZNNIV SI | 4 | 07119904948 | $1.00 | Shop at ECS Tuning | ||||
| 14 | Agrafe | 2 | 86190002059 | $0.75 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
