Pièces dét. capot, volets/sys. fermet. for BMW 5 Series E39 525td (1998)

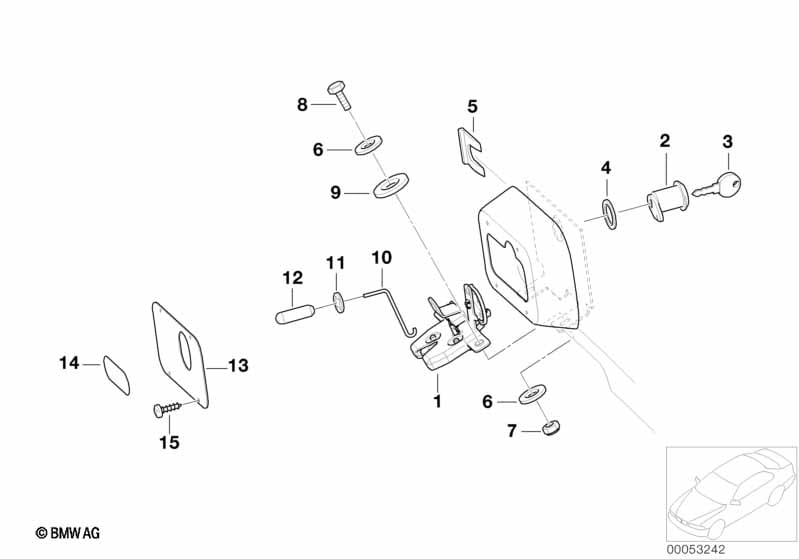

This Pièces dét. capot, volets/sys. fermet. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Serrure couvercle AR avec micro-commut. | 3 | 51248169532 | $32.98 | Shop at ECS Tuning | |||||
| 02 | Fermeture avec code gauche | 3 | 51211901537 | $79.12 | Shop at ECS Tuning | |||||
| 03 | Clé normale (code) | SERVICE | 2 | 32321109800 | $37.40 | Shop at ECS Tuning | ||||
| 03 | Clé normale (pièce brute) | SERVICE | 2 | 32321109801 | $24.93 | Shop at ECS Tuning | ||||
| 04 | Appui | 3 | 51211889499 | $1.09 | Shop at ECS Tuning | |||||
| 05 | Agrafe | 3 | 51211838035 | $1.11 | Shop at ECS Tuning | |||||
| 06 | Rondelle | 18X5,5X1,5MM | 4 | 86290008790 | arrêté | Shop at ECS Tuning | ||||
| 07 | Ecrou à six pans autobloquant | M5 | 2 | 09/2004 | 07129964603 | $0.16 | arrêté | Shop at ECS Tuning | ||
| 07 | Ecrou à six pans | M5-8-ZNNIV SI | 2 | 07129904475 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Vis six pans | M5X16 | 2 | 05/2006 | 07119913113 | $2.19 | arrêté | Shop at ECS Tuning | ||
| 08 | Vis six pans | M5X16-U1-8.8 | 2 | 07119905215 | $0.33 | Shop at ECS Tuning | ||||
| 09 | Plaque d'appui | A10,5 | 2 | 07119931096 | $0.22 | Shop at ECS Tuning | ||||
| 10 | Tringle de liaison | 1 | 86290008848 | arrêté | Shop at ECS Tuning | |||||
| 11 | Ecrou de ressort | 2 | 86290008849 | arrêté | Shop at ECS Tuning | |||||
| 12 | Cache | 1 | 86290008847 | arrêté | Shop at ECS Tuning | |||||
| 13 | Couvercle d'abattant arrière | 135X76MM | 1 | 86290008769 | arrêté | Shop at ECS Tuning | ||||
| 13 | Couvercle d'abattant latéral | 130X64,5MM | 2 | 86290008846 | arrêté | Shop at ECS Tuning | ||||
| 14 | Panneau | 1 | 86290008770 | arrêté | Shop at ECS Tuning | |||||
| 15 | Vis a tole tête bombee | ST3,5X8 | X | 07119900281 | $0.36 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
