Cric for BMW 5 Series E39 525td (1998)

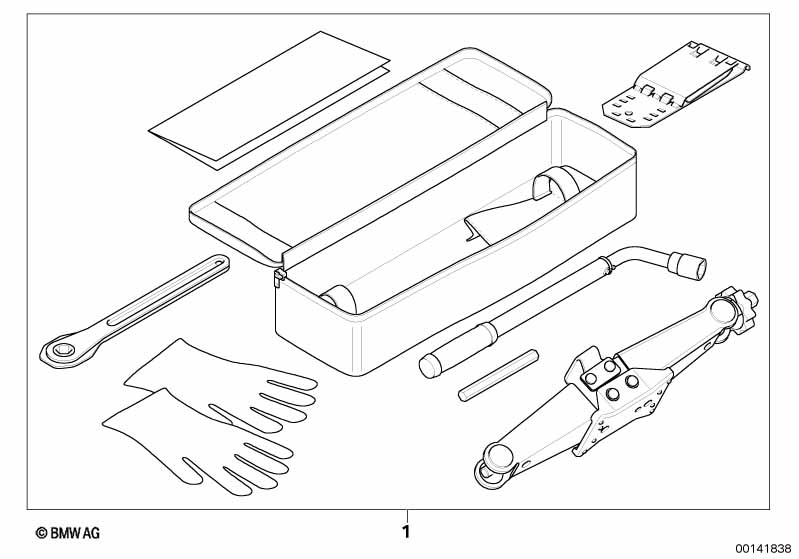

This Cric technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour changement de roues saisonnier, pas à emmener à bord. |
||||||||||
| 01 | Cric | 1 | 04/2005 | 71106768319 | $158.95 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
