Protection contre les martres for BMW 5 Series E39 525td (1998)

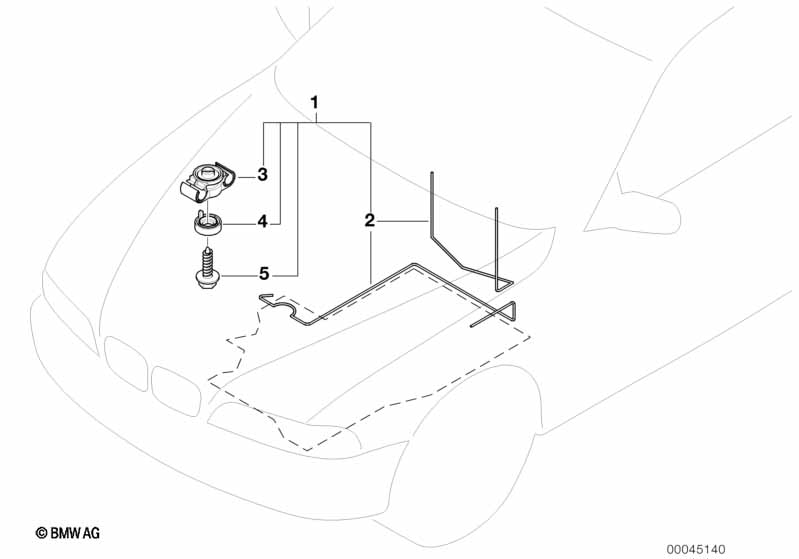

This Protection contre les martres technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention : La notice de montage ne fait pas partie du kit de postéquipement. Imprimer la notice actualisée sur le portail Aftersales Assistance Portal (ASAP) et la remettre au client. |
|||||||||
| 03 | Fixation de conduite | 11 | 82100000028 | arrêté | Shop at ECS Tuning | |||||
| 04 | Plaque d'appui | 11 | 82100000029 | arrêté | Shop at ECS Tuning | |||||
| 05 | Vis à tôle | ST5,5X19-C-Z1 | 11 | 07119916955 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
