Moteur for BMW 3 Series E30 318is (1990)

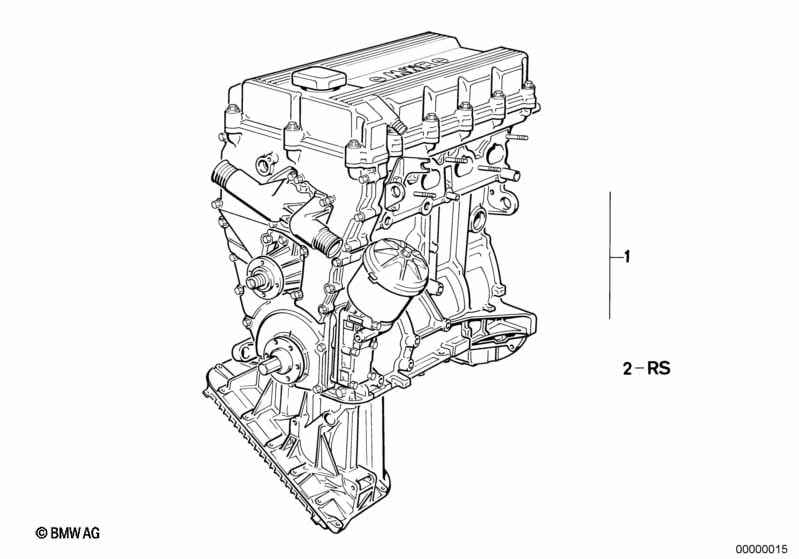

This Moteur technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-Moteur | 184S1 | 1 | 11001727467 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Necessaire de montage mecanisme moteur | 1 | 11009059259 | $68.12 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318is Moteur?
- This technical diagram illustrates the Moteur within the Moteur group for the 3 Series E30 318is produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the AT-Moteur (Part #11001727467).
- Which models use the hardware listed in this Moteur?
- The hardware and components featured in the Moteur are specific to the 3 Series E30 318is produced during 1990. These technical specifications ensure that parts like the AT-Moteur (11001727467) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Moteur assembly?
- Each item in the Moteur corresponds to the numbered list below the illustration. For the 3 Series E30 318is, you can identify the AT-Moteur by locating its position on the schematic, which then links to the official BMW part number 11001727467 for the Moteur section.
