Suspension moteur - silentbloc moteur for BMW 5 Series E12 518 (1976)

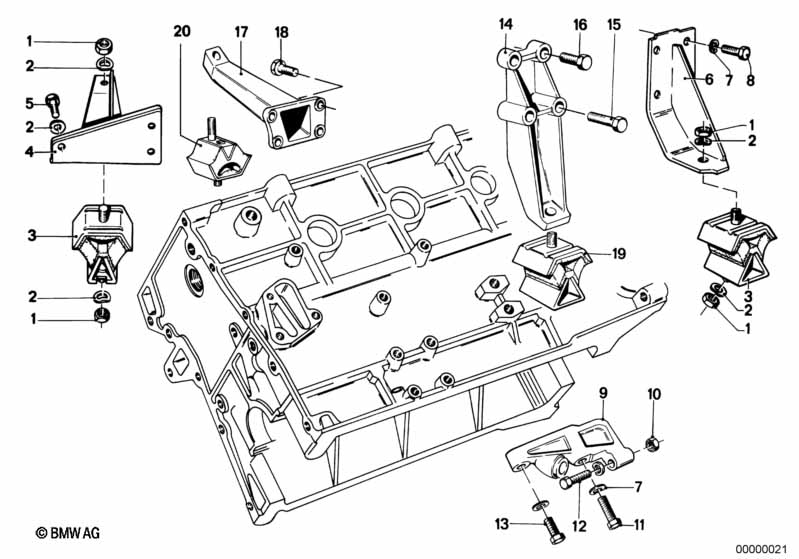

This Suspension moteur - silentbloc moteur technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ecrou à six pans | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 02 | Rondelle elastique | B10-ZNS3 | 7 | 07119904463 | Shop at ECS Tuning | |||||
| 03 | Silentbloc | 2 | 11811109089 | arrêté | Shop at ECS Tuning | |||||
| 03 | Silentbloc | 1 | 11811245019 | arrêté | Shop at ECS Tuning | |||||
| 04 | Etrier d'appui droit | 1 | 11811245017 | $25.78 | arrêté | Shop at ECS Tuning | ||||
| 06 | Etrier d'appui gauche | 1 | 11811245860 | $14.79 | arrêté | Shop at ECS Tuning | ||||
| 07 | Rondelle elastique | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Vis six pans | M8X20-ZNNIV SI | 4 | 07119903039 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
