Suspension moteur - silentbloc moteur for BMW 3 Series E30 325ix

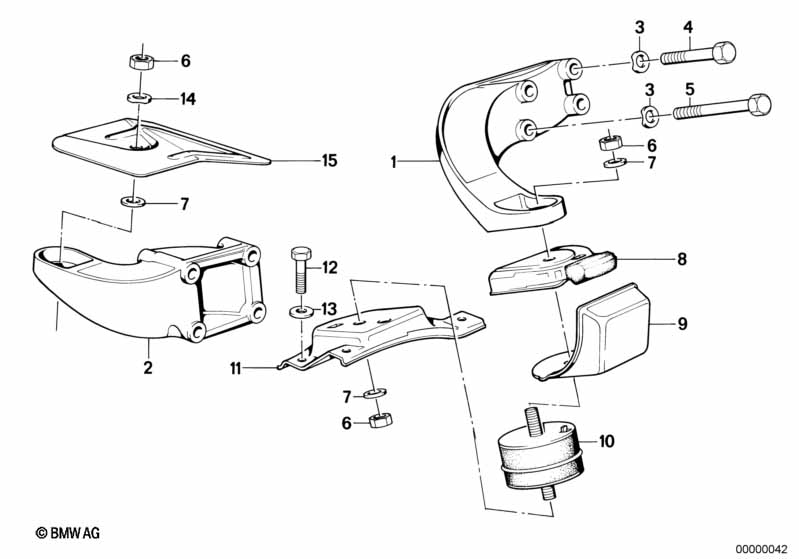

This Suspension moteur - silentbloc moteur technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Etrier d'appui gauche | 1 | 11811701019 | $84.82 | arrêté | Shop at ECS Tuning | ||||
| 02 | Etrier d'appui droit | 1 | 11811701020 | $84.26 | arrêté | Shop at ECS Tuning | ||||
| 03 | Rondelle elastique | B10-ZNS3 | X | 07119904463 | Shop at ECS Tuning | |||||
| 04 | Vis six pans | M10X60-10.9ZNS3 | 4 | 07119905162 | $1.78 | Shop at ECS Tuning | ||||
| 05 | Vis six pans | M10X80 | 4 | 31111136251 | $1.11 | arrêté | Shop at ECS Tuning | |||
| 06 | Ecrou à six pans | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 07 | Plaque d'appui | A10,5X22 | 5 | 31111114348 | $0.67 | Shop at ECS Tuning | ||||
| 08 | Butée supérieure | 2 | 11811701160 | $40.86 | arrêté | Shop at ECS Tuning | ||||
| 09 | Arrêt inférieur | 2 | 11811701159 | $18.40 | arrêté | Shop at ECS Tuning | ||||
| 10 | Silentbloc | 2 | 11811132324 | $81.63 | Shop at ECS Tuning | |||||
| 11 | Support gauche | 1 | 11811701013 | $8.62 | arrêté | Shop at ECS Tuning | ||||
| 11 | Appui droit | 1 | 11811701014 | $107.42 | arrêté | Shop at ECS Tuning | ||||
| 12 | Vis six pans | M8X40-ZNNIV SI | 6 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 13 | Plaque d'appui | A8,4 | 6 | 33311108205 | $0.16 | Shop at ECS Tuning | ||||
| 14 | Rondelle elastique | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 15 | Tôle pare-chaleur | 1 | 11811127493 | $9.75 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
