Suspension moteur - silentbloc moteur for BMW 3 Series E30 318is (1990)

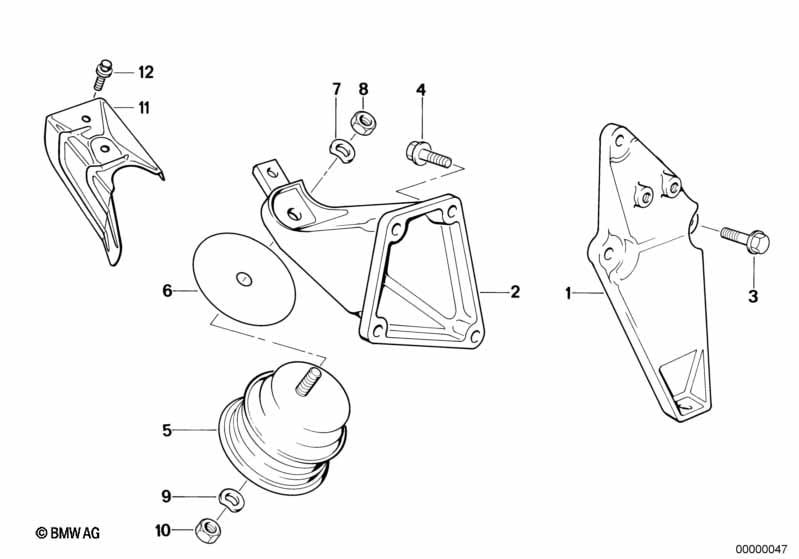

This Suspension moteur - silentbloc moteur technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Etrier d'appui gauche | 1 | 11811132777 | $32.81 | arrêté | Shop at ECS Tuning | ||||
| 02 | Etrier d'appui droit | 1 | 11811132776 | $32.81 | arrêté | Shop at ECS Tuning | ||||
| 03 | Vis six pans avec rondelle | M8X26-10.9-ZNS3 | 3 | 07119904092 | Shop at ECS Tuning | |||||
| 04 | Vis six pans avec rondelle | M8X26-10.9-ZNS3 | 4 | 07119904092 | Shop at ECS Tuning | |||||
| 05 | Silentbloc | 2 | 11811137076 | $86.11 | Shop at ECS Tuning | |||||
| 06 | Tôle pare-chaleur | 1 | 11811137053 | $4.92 | arrêté | Shop at ECS Tuning | ||||
| 07 | Rondelle elastique | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 08 | Ecrou à six pans | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 09 | Rondelle elastique | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 10 | Ecrou à six pans | M10-8-ZNS | 2 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 11 | Tôle pare-chaleur | 1 | 11811137771 | $14.87 | Shop at ECS Tuning | |||||
| 12 | Vis six pans | M6X10 | 1 | 07119900054 | $0.25 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
