Carter-moteur for BMW 5 Series E12 518 (1976)

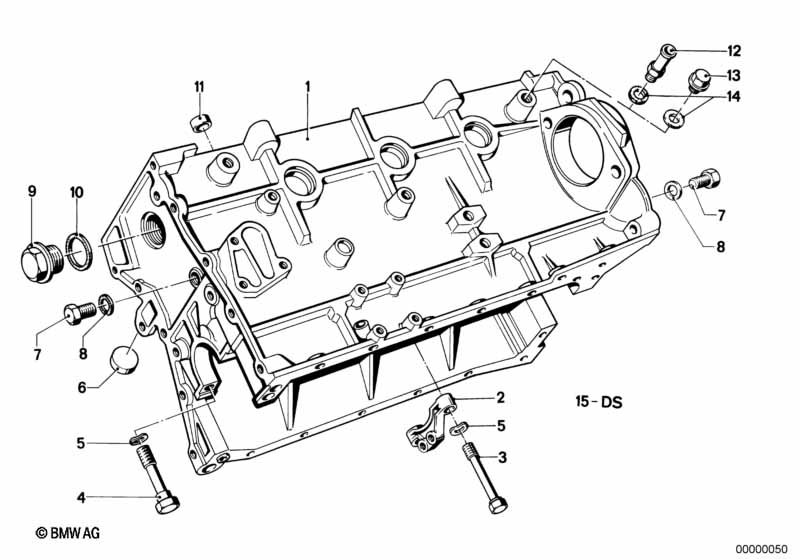

This Carter-moteur technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bloc-moteur avec pistons | 1 | 07/1975 | 09/1980 | 11111270115 | arrêté | Shop at ECS Tuning | |||
| 02 | Support | 1 | 11410704002 | arrêté | Shop at ECS Tuning | |||||
| 03 | Vis à collet | M10X90 | 2 | 33321140568 | $1.17 | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M10X75 | 8 | 11111735525 | $0.93 | Shop at ECS Tuning | ||||
| 05 | Rondelle elastique | B10-ZNS3 | X | 07119904463 | Shop at ECS Tuning | |||||
| 06 | Couvercle de fermeture | D=36MM | 8 | 11111717939 | $2.20 | Shop at ECS Tuning | ||||
| 07 | Vis bouchon | AM14X1,5 | 2 | 07119909704 | Shop at ECS Tuning | |||||
| 08 | Anneau d'étanchéité | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Vis bouchon | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 10 | Anneau d'étanchéité | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 11 | Douille d'ajustage | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Raccord à visser | M10 | 1 | 11111250587 | $10.25 | arrêté | Shop at ECS Tuning | |||
| 12 | Raccord à visser | M12 | 1 | 11111270350 | $6.78 | Shop at ECS Tuning | ||||
| 13 | Anneau d'étanchéité | A10X13.5-AL | 1 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Anneau d'étanchéité | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Vis bouchon | M10 | 1 | 11111254189 | $2.13 | Shop at ECS Tuning | ||||
| 15 | Pochette joints carter mot. sans amiante | M10 B16/B18 | 1 | 11111734114 | $94.05 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
