Couvre culasse for BMW 6 Series E24 633CSi (1979)

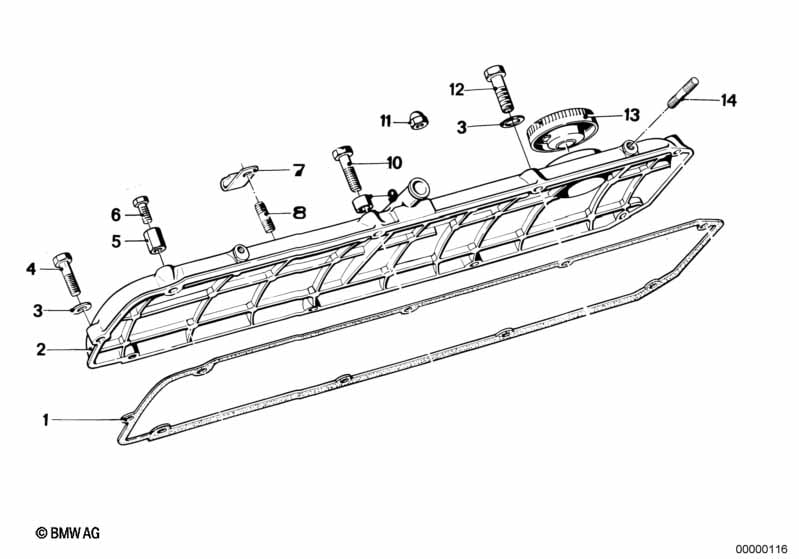

This Couvre culasse technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint sans amiante | 1 | 09/1981 | 11121730936 | arrêté | Shop at ECS Tuning | ||||
| 02 | Couvre culasse | 1 | 09/1981 | 11121276593 | $188.46 | arrêté | Shop at ECS Tuning | |||
| 03 | Rondelle élastique noire | B6-ZN | 9 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Ecrou à six pans | M6 | 2 | 13651270329 | arrêté | Shop at ECS Tuning | ||||
| 06 | Vis six pans | M6X8 | 2 | 07119913420 | $0.13 | arrêté | Shop at ECS Tuning | |||
| 07 | Collier | 1 | 11530623124 | $0.21 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
