Carter-cylindres-Reniflard for BMW 7 Series E23 728i (1986)

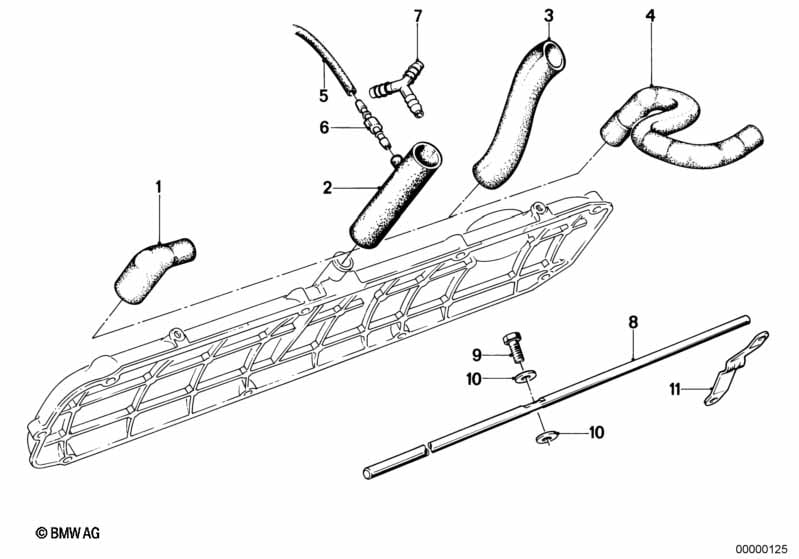

This Carter-cylindres-Reniflard technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Alimentation d'huile | ||||||||||
| 01 | Tuyau flexible de ventilation | 1 | 11151261161 | $7.05 | Shop at ECS Tuning | |||||
| 08 | Tuyau d'huile | 1 | 11421256294 | $42.46 | Shop at ECS Tuning | |||||
| 09 | Vis creuse | 2 | 11421738621 | $6.01 | Shop at ECS Tuning | |||||
| 10 | Anneau d'étanchéité | A8X11,5 | 4 | 11421252343 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Collier | 2 | 11421250567 | $1.05 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Carter-cylindres-Reniflard?
- This technical diagram illustrates the Carter-cylindres-Reniflard within the Moteur group for the 7 Series E23 728i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Tuyau flexible de ventilation (Part #11151261161).
- Which models use the hardware listed in this Carter-cylindres-Reniflard?
- The hardware and components featured in the Carter-cylindres-Reniflard are specific to the 7 Series E23 728i produced during 1986. These technical specifications ensure that parts like the Tuyau flexible de ventilation (11151261161) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carter-cylindres-Reniflard assembly?
- Each item in the Carter-cylindres-Reniflard corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Tuyau flexible de ventilation by locating its position on the schematic, which then links to the official BMW part number 11151261161 for the Moteur section.
