Couvre culasse for BMW 3 Series E30 318is (1990)

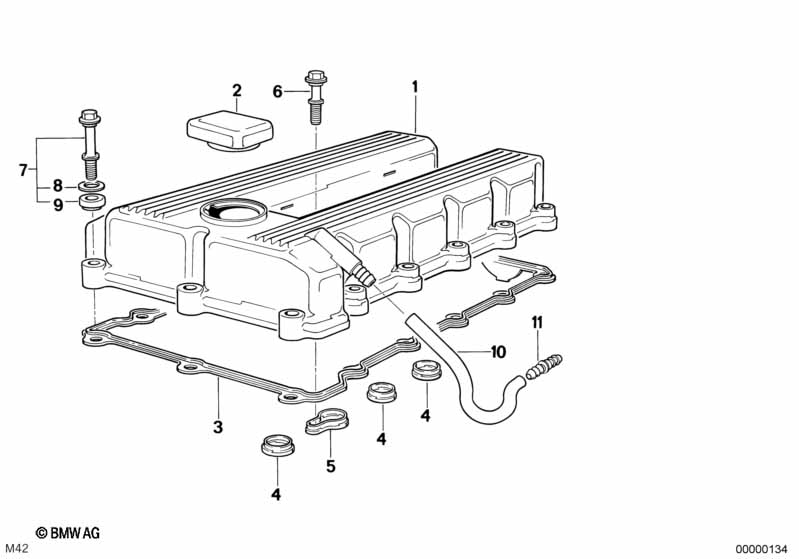

This Couvre culasse technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Couvre culasse | 1 | 11121721198 | $571.14 | Shop at ECS Tuning | |||||
| 02 | Bouchon de tubulure remplissage d'huile | 1 | 11121743294 | $7.49 | Shop at ECS Tuning | |||||
| 02 | Bouchon de tubulure remplissage d'huile | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| 03 | Joint de profil | 1 | 11121721876 | $22.04 | Shop at ECS Tuning | |||||
| 04 | Joint de profil | 3 | 11121721476 | $1.79 | Shop at ECS Tuning | |||||
| 05 | Joint de profil | 1 | 11121721475 | $2.13 | Shop at ECS Tuning | |||||
| 06 | Vis à collet | M6X27,5 | 2 | 11121721883 | $2.67 | Shop at ECS Tuning | ||||
| 07 | Vis à collet | M6X42,5 | X | 11127568809 | $3.17 | Shop at ECS Tuning | ||||
| 08 | Plaque d'appui | 10-200 HV-ZNNIV | X | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 09 | Joint d'étanchéité | X | 11121721879 | $1.20 | Shop at ECS Tuning | |||||
| 10 | Tuyau flexible de ventilation | 1 | 11151717858 | $16.13 | Shop at ECS Tuning | |||||
| 11 | Raccord | 1 | 11151727393 | $2.75 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318is Couvre culasse?
- This technical diagram illustrates the Couvre culasse within the Moteur group for the 3 Series E30 318is produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Couvre culasse (Part #11121721198).
- Which models use the hardware listed in this Couvre culasse?
- The hardware and components featured in the Couvre culasse are specific to the 3 Series E30 318is produced during 1990. These technical specifications ensure that parts like the Couvre culasse (11121721198) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Couvre culasse assembly?
- Each item in the Couvre culasse corresponds to the numbered list below the illustration. For the 3 Series E30 318is, you can identify the Couvre culasse by locating its position on the schematic, which then links to the official BMW part number 11121721198 for the Moteur section.
