Mécanisme d'embiellage - Piston for BMW 5 Series E34 520i (1987)

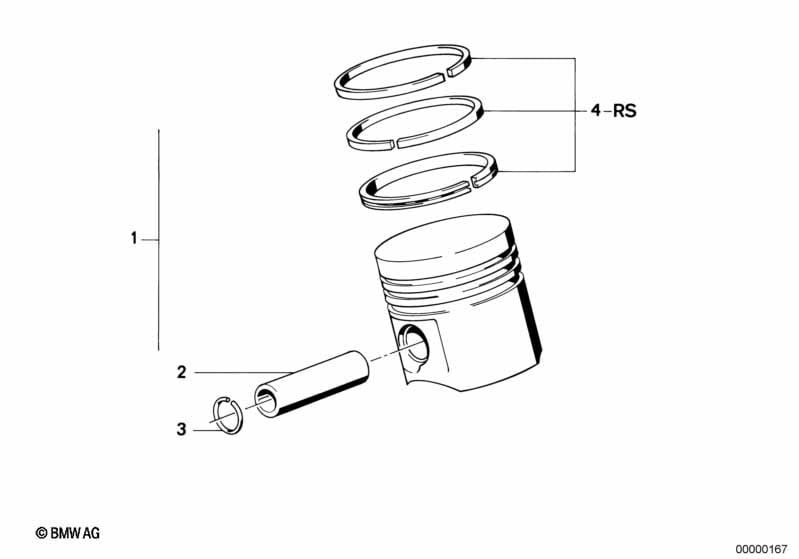

This Mécanisme d'embiellage - Piston technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Piston mahle | 79,980MM("0") | 6 | 11251705322 | $222.39 | Shop at ECS Tuning | ||||
| 01 | Piston mahle | 80,060MM("00") | 6 | 11251705323 | arrêté | Shop at ECS Tuning | ||||
| 01 | Piston mahle | 80,230MM(+0,25) | 6 | 11251705324 | $157.36 | Shop at ECS Tuning | ||||
| 01 | Piston mahle | 80,480MM(+0,50) | 6 | 11251705325 | arrêté | Shop at ECS Tuning | ||||
| 01 | Piston mahle | 79,980MM("0") | 6 | 11251714813 | $157.36 | arrêté | Shop at ECS Tuning | |||
| 01 | Piston mahle | 80,060MM("00") | 6 | 11251714814 | arrêté | Shop at ECS Tuning | ||||
| 01 | Piston mahle | 80,230MM(+0,25) | 6 | 11251714815 | $170.75 | arrêté | Shop at ECS Tuning | |||
| 01 | Piston mahle | 80,480MM(+0,50) | 6 | 11251714816 | $235.54 | arrêté | Shop at ECS Tuning | |||
| 01 | Piston nueral/alcan | 79,983MM("0") | 6 | 11251714842 | arrêté | Shop at ECS Tuning | ||||
| 01 | Piston nueral/alcan | 80,063MM("00") | 6 | 11251714843 | $157.36 | Shop at ECS Tuning | ||||
| 01 | Piston borgo | 79,980MM("0") | 6 | 11251720532 | arrêté | Shop at ECS Tuning | ||||
| 01 | Piston borgo | 79,980MM("0") | 6 | 11251730001 | arrêté | Shop at ECS Tuning | ||||
| 01 | Piston borgo | 80,060MM("00") | 6 | 11251730002 | arrêté | Shop at ECS Tuning | ||||
| 01 | Piston borgo | 79,980MM("0") | 6 | 11251730399 | Shop at ECS Tuning | |||||
| 01 | Piston borgo | 80,060MM("00") | 6 | 11251730400 | arrêté | Shop at ECS Tuning | ||||
| 03 | Circlip | C22X1.5 | X | 07119934460 | $0.35 | Shop at ECS Tuning | ||||
| 04 | Jeu de reparation segments | 79,980MM("0") | 6 | 11251714846 | $50.96 | arrêté | Shop at ECS Tuning | |||
| 04 | Jeu de reparation segments | 80,060MM(+0,08) | 6 | 11251714847 | $48.73 | arrêté | Shop at ECS Tuning | |||
| 04 | Jeu de reparation segments | 80,230MM(+0,25) | 6 | 11251714848 | $48.73 | arrêté | Shop at ECS Tuning | |||
| 04 | Jeu de reparation segments | 80,480MM(+0,50) | 6 | 11251714849 | $48.73 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
