Carter d'huile/indicateur niveau d'huile for BMW 3 Series E21 318 (1977)

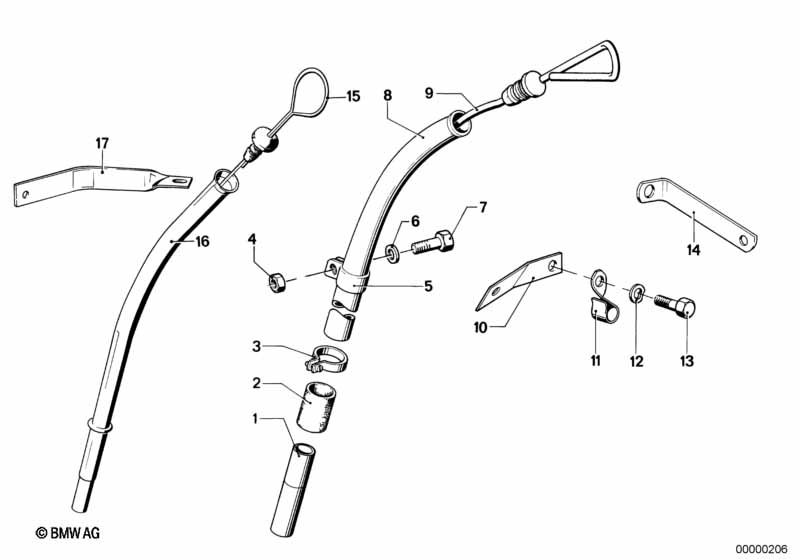

This Carter d'huile/indicateur niveau d'huile technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tuyau de guidage | 1 | 09/1980 | 11111258354 | $28.13 | Shop at ECS Tuning | ||||
| 01 | Tuyau de guidage | 14,75 | 1 | 09/1980 | 11431266325 | Shop at ECS Tuning | ||||
| 02 | Manchon | 1 | 09/1980 | 11431258329 | $2.48 | arrêté | Shop at ECS Tuning | |||
| 03 | Collier | L18-24 | 2 | 09/1980 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| 04 | Ecrou à six pans | M6-8-ZNNIV SI | 1 | 09/1980 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 05 | Collier | 1 | 09/1980 | 11431258342 | $1.04 | Shop at ECS Tuning | ||||
| 06 | Plaque d'appui | A6,4-200HV-ZNS3 | 1 | 09/1980 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 07 | Vis six pans | M6X20-8.8-ZNS | 1 | 09/1980 | 07119913016 | $0.60 | arrêté | Shop at ECS Tuning | ||
| 08 | Tuyau d.guidage partie sup. | 1 | 09/1980 | 11431260338 | $32.73 | arrêté | Shop at ECS Tuning | |||
| 09 | Jauge d'huile | GES.L=552 MM | 1 | 09/1980 | 11431266740 | $14.41 | arrêté | Shop at ECS Tuning | ||
| 10 | Bride de fixation | 1 | 09/1980 | 11431258218 | $0.83 | Shop at ECS Tuning | ||||
| 11 | Collier | 1 | 13311261760 | $3.17 | arrêté | Shop at ECS Tuning | ||||
| 12 | Rondelle élastique noire | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Vis six pans | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
