Alimentation huile/Pompe huile+entrainem for BMW 3 Series E30 318is (1990)

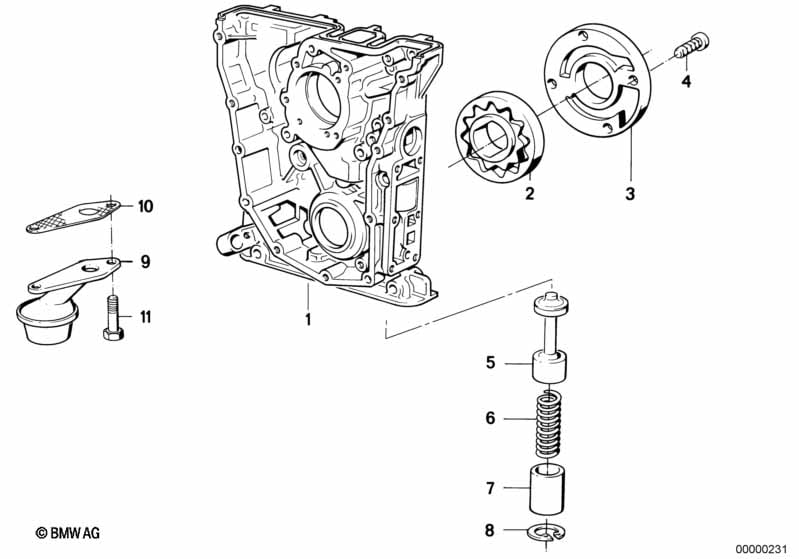

This Alimentation huile/Pompe huile+entrainem technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter inferieur de distribution | 1 | 11141727191 | $323.26 | arrêté | Shop at ECS Tuning | ||||
| 02 | Jeu de rotors | 1 | 11141714611 | $51.57 | Shop at ECS Tuning | |||||
| 03 | Couvercle de pompe a huile | 1 | 11141714613 | $12.80 | Shop at ECS Tuning | |||||
| 04 | Vis Isa | M6X14 | 4 | 07129903401 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Soupape de commande | 1 | 11141247393 | $9.17 | Shop at ECS Tuning | |||||
| 06 | Ressort hélicoïdal | 1 | 11411706809 | $3.43 | Shop at ECS Tuning | |||||
| 07 | Entretoise | 1 | 11141247397 | $2.14 | Shop at ECS Tuning | |||||
| 08 | Bague de securité | 21X1 | 1 | 07119934625 | $0.24 | Shop at ECS Tuning | ||||
| 09 | Raccord tuyau d'admission d'air | 1 | 11411715264 | $16.68 | Shop at ECS Tuning | |||||
| 10 | Joint sans amiante | 1 | 11411715116 | $5.17 | Shop at ECS Tuning | |||||
| 11 | Vis six pans avec rondelle | M6X18 | 2 | 11131247069 | $0.47 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
