Systeme de refroidissement - durit for BMW 3 Series E30 318is (1990)

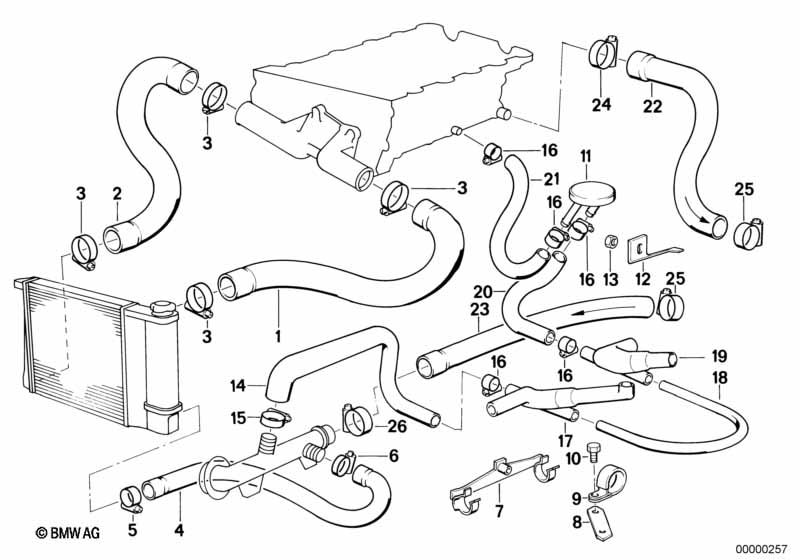

This Systeme de refroidissement - durit technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Version pays chauds |
S823A=Oui |
||||||||
| 01 | Durit | 1 | 11531717622 | $22.86 | Shop at ECS Tuning | |||||
| 02 | Durit | 1 | 11531717620 | $25.65 | Shop at ECS Tuning | |||||
| 03 | Collier | L42-48 | 4 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 04 | Durit | 1 | 11531709052 | $36.56 | Shop at ECS Tuning | |||||
| 05 | Collier | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 06 | Collier | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Support | 1 | 11531721871 | $2.88 | Shop at ECS Tuning | |||||
| 08 | Tole de fixation | 1 | 11531727305 | $9.49 | Shop at ECS Tuning | |||||
| 09 | Collier | D=22/6,4 | 1 | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 11 | Element de chauffage | 1 | 13541727206 | $20.64 | Shop at ECS Tuning | |||||
| 12 | Ressort | 1 | 13541727350 | $0.40 | Shop at ECS Tuning | |||||
| 13 | Ecrou six pans avec plaque | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 14 | Durit | 1 | 11531714636 | $11.84 | Shop at ECS Tuning | |||||
| 15 | Collier | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Collier | L15-18 | 5 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 17 | Tuyau flexible de ventilation | 1 | 11151721908 | $15.82 | Shop at ECS Tuning | |||||
| 18 | Tuyau | 1 | 11531714637 | $18.03 | Shop at ECS Tuning | |||||
| 19 | Tuyau d'air | 1 | 13411721907 | $8.75 | Shop at ECS Tuning | |||||
| 20 | Durit | 1 | 11531721847 | $10.07 | Shop at ECS Tuning | |||||
| 21 | Durit | 1 | 11531721846 | $9.51 | Shop at ECS Tuning | |||||
| 22 | Flexible d'alimentation | 1 | 64211386690 | $21.88 | Shop at ECS Tuning | |||||
| 23 | Flexible de retour | 1 | 64211386691 | $27.84 | Shop at ECS Tuning | |||||
| 24 | Collier | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 25 | Collier | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 26 | Collier | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
