Dispositif d'admission for BMW 5 Series E12 525

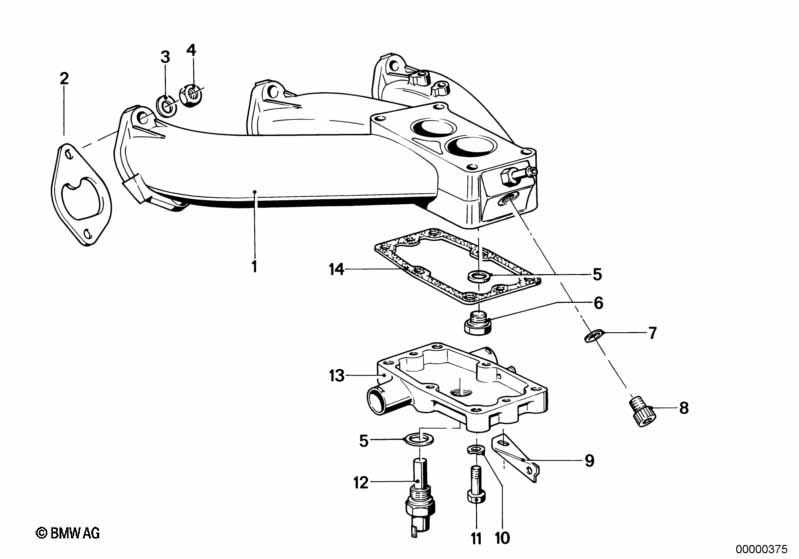

This Dispositif d'admission technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conduite d'admission avant | 1 | 08/1975 | 11611258040 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Vis bouchon | M10X1-ST-ZNS3 | 1 | 08/1975 | 07119904393 | $1.89 | Shop at ECS Tuning | |||
| 01 | Conduite d'admission avant | 1 | 08/1975 | 08/1976 | 11611262939 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Suede version |
=Oui |
|||||||||
| 01 | Conduite d'admission avant | 1 | 10/1975 | 11611258040 | arrêté | Shop at ECS Tuning | ||||
| 01 | Conduite d'admission avant | 1 | 10/1975 | 08/1976 | 11611262935 | arrêté | Shop at ECS Tuning | |||
| 02 | Joint sans amiante | 6 | 08/1976 | 11619065676 | $4.18 | Shop at ECS Tuning | ||||
| 03 | Plaque d'appui | 8,4X16X1,6-ZNNV | X | 08/1976 | 07119907030 | Shop at ECS Tuning | ||||
| 04 | Ecrou à six pans avec bride | M8 | X | 08/1976 | 11611713432 | $0.43 | arrêté | Shop at ECS Tuning | ||
| 05 | Anneau d'étanchéité | A14X18-AL | 2 | 08/1976 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 06 | Vis bouchon | AM14X1,5 | 1 | 08/1976 | 07119909704 | Shop at ECS Tuning | ||||
| 07 | Anneau d'étanchéité | A10X13.5-AL | 1 | 08/1976 | 07119963073 | $0.11 | Shop at ECS Tuning | |||
| 08 | Vis bouchon | M10X1-ST-ZNS3 | 1 | 08/1976 | 07119904393 | $1.89 | Shop at ECS Tuning | |||
| 09 | Support | 1 | 08/1976 | 11611251339 | arrêté | Shop at ECS Tuning | ||||
| 10 | Rondelle élastique noire | B6-ZN | 4 | 08/1976 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 11 | Vis six pans | M6X30-8.8-ZNS3 | 4 | 08/1976 | 07119904116 | $0.38 | Shop at ECS Tuning | |||
| 12 | Interrupteur thermique | 17CEL | 1 | 08/1976 | 61311364437 | $27.45 | Shop at ECS Tuning | |||
| Pour véhicules avec Suede version |
=Oui |
|||||||||
| 12 | Interrupteur thermique | 17CEL | 1 | 10/1975 | 61311364437 | $27.45 | Shop at ECS Tuning | |||
| 12 | Interrupteur thermique | 65CEL | 1 | 10/1975 | 08/1976 | 61311354867 | $56.10 | Shop at ECS Tuning | ||
| 13 | Couvercle | 1 | 08/1976 | 11611257490 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Vis bouchon | AM14X1,5 | 1 | 08/1976 | 07119909704 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
